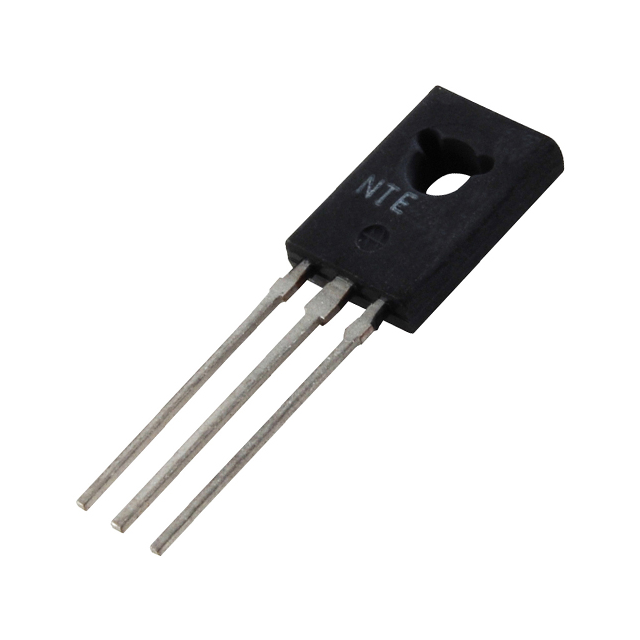

NTE2634

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - RF

Terminal Position :

Single

Noise Figure (dB Typ @ f) :

-

DC Current Gain-Min (hFE) :

20

Gain :

-

Package / Case :

TO-225AA, TO-126-3

Product Status :

Active

Collector-Emitter Voltage-Max :

95 V

Series :

-

Highest Frequency Band :

HIGH FREQUENCY BAND

Transistor Element Material :

SILICON

Subcategory :

Other Transistors

Transistor Type :

PNP

Collector Current-Max (IC) :

0.3 A

Package :

Bag

Collector-Base Capacitance-Max :

2 pF

Frequency - Transition :

1.2GHz

Voltage - Collector Emitter Breakdown (Max) :

95V

Package Shape :

RECTANGULAR

Configuration :

Single

Number of Terminals :

3

JESD-30 Code :

R-PSFM-T3

ECCN Code :

EAR99

Polarity/Channel Type :

PNP

Power Dissipation-Max (Abs) :

3 W

Power - Max :

3W

Operating Temperature :

175°C (TJ)

Transistor Application :

AMPLIFIER

Reach Compliance Code :

Unknown

Current - Collector (Ic) (Max) :

300mA

Surface Mount :

No

DC Current Gain (hFE) (Min) @ Ic, Vce :

20 @ 50mA, 10V

Terminal Form :

THROUGH-HOLE

Qualification Status :

Not Qualified

JEDEC-95 Code :

TO-126

Mounting Type :

Through Hole

Number of Elements :

1

Manufacturer :

NTE Electronics

Supplier Device Package :

TO-126
