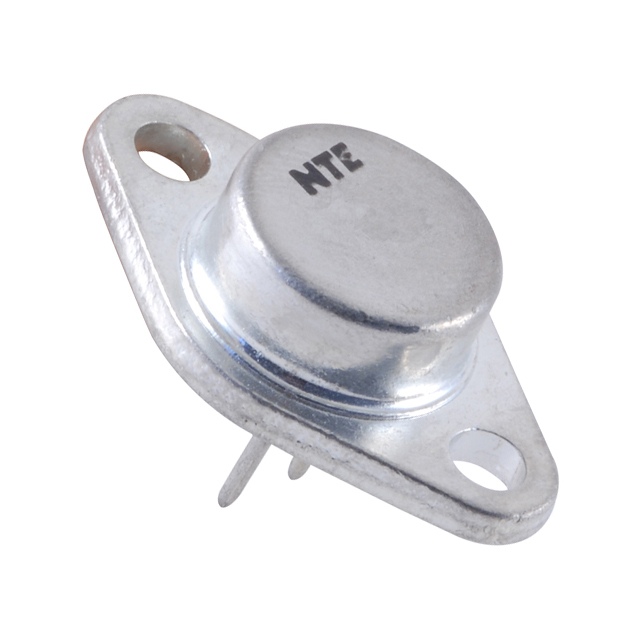

NTE226MP

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Qualification Status :

Not Qualified

Terminal Position :

BOTTOM

Package / Case :

TO-213AA, TO-66-2

Product Status :

Active

Frequency - Transition :

-

Transistor Element Material :

GERMANIUM

JESD-30 Code :

O-MBFM-P2

Current - Collector (Ic) (Max) :

2 A

Voltage - Collector Emitter Breakdown (Max) :

35 V

Case Connection :

COLLECTOR

Subcategory :

Other Transistors

Operating Temperature :

85°C (TJ)

Mounting Type :

Through Hole

Manufacturer :

NTE Electronics

Polarity/Channel Type :

PNP

Series :

-

Current - Collector Cutoff (Max) :

200μA (ICBO)

Reach Compliance Code :

Unknown

Collector-Emitter Voltage-Max :

35 V

DC Current Gain-Min (hFE) :

100

Power Dissipation Ambient-Max :

12 W

Package Shape :

Round

ECCN Code :

EAR99

Transistor Application :

AMPLIFIER

Pin Count :

2

Configuration :

SEPARATE, 2 ELEMENTS

Transistor Type :

PNP

Number of Terminals :

2

Package :

Bag

DC Current Gain (hFE) (Min) @ Ic, Vce :

50 @ 200mA, 1.5V

Vce Saturation (Max) @ Ib, Ic :

-

Supplier Device Package :

TO-66

Terminal Form :

PIN/PEG

Power - Max :

12 W

JEDEC-95 Code :

TO-66

Surface Mount :

No

Number of Elements :

2

Collector Current-Max (IC) :

2 A

Additional Feature :

MATCHED PAIR OF NTE226
