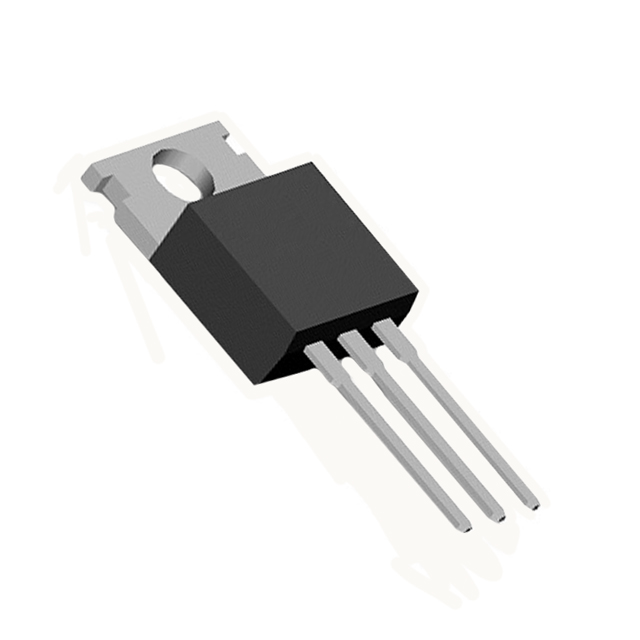

IXTP14N60X2

Manufacturer :

Littelfuse

Product Category :

Transistors - FETs, MOSFETs - Single

Power Dissipation :

180W

Product Status :

Active

Channel Type :

N Channel

Transistor Type :

1 N-Channel

Rds On (Max) @ Id, Vgs :

250mOhm @ 7A, 10V

Current - Continuous Drain (Id) @ 25°C :

14A (Tc)

Product Type :

MOSFET

Number of Channels :

1 Channel

FET Type :

N-Channel

Transistor Polarity :

N-Channel

Supplier Device Package :

TO-220

Rise Time :

27 ns

Package :

Tube

Brand :

IXYS

RoHS :

Details

Mounting Type :

Through Hole

Packaging :

Tube

Power Dissipation (Max) :

180W (Tc)

FET Feature :

-

Channel Mode :

Enhancement

Drain to Source Voltage (Vdss) :

600 V

Package / Case :

TO-220-3

Configuration :

Single

Subcategory :

MOSFETs

Product Category :

MOSFET

Series :

Ultra X2

Manufacturer :

IXYS

Minimum Operating Temperature :

- 55 C

Vgs (Max) :

±30V

Operating Temperature :

-55°C ~ 150°C (TJ)

Input Capacitance (Ciss) (Max) @ Vds :

740 pF @ 25 V

Base Product Number :

IXTP14

Gate Charge (Qg) (Max) @ Vgs :

16.7 nC @ 10 V

Vgs(th) (Max) @ Id :

4.5V @ 250μA

Mounting Style :

Through Hole

Qualification :

-

Maximum Operating Temperature :

+ 150 C

Continuous Drain Current Id :

14A

Drive Voltage (Max Rds On, Min Rds On) :

10V
