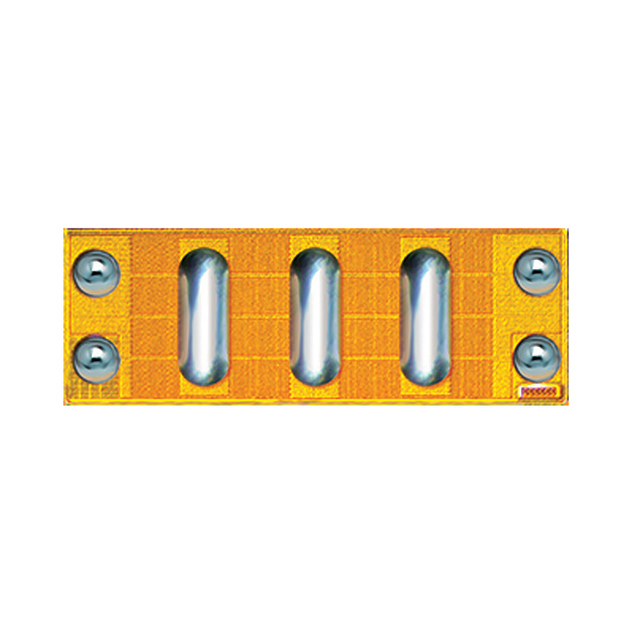

EPC2019
Or copy the link below:
- Mfr.Part #
- EPC2019
- Manufacturer
- EPC
- Package / Case
- Die
- Datasheet
- Download
- Description
- GANFET N-CH 200V 8.5A DIE
- Stock
- 2,578
- In Stock ：
- 2,578
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPC
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Factory Lead Time :
- 12 Weeks
- Supplier Device Package :
- Die
- Drain to Source Voltage (Vdss) :
- 200V
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Surface Mount
- Rds On Max :
- 50 mΩ
- RoHS Status :
- ROHS3 Compliant
- Vgs (Max) :
- +6V, -4V
- Packaging :
- Tape and Reel (TR)
- Series :
- eGaN®
- Min Operating Temperature :
- -40°C
- Rds On (Max) @ Id, Vgs :
- 50mOhm @ 7A, 5V
- Continuous Drain Current (ID) :
- 8.5A
- Max Operating Temperature :
- 150°C
- Input Capacitance :
- 270pF
- Current - Continuous Drain (Id) @ 25°C :
- 8.5A Ta
- FET Type :
- N-Channel
- Published :
- 2012
- Drive Voltage (Max Rds On,Min Rds On) :
- 5V
- Input Capacitance (Ciss) (Max) @ Vds :
- 270pF @ 100V
- Vgs(th) (Max) @ Id :
- 2.5V @ 1.5mA
- Gate Charge (Qg) (Max) @ Vgs :
- 2.5nC @ 5V
- Package / Case :
- Die
- Mount :
- Surface Mount
- Operating Temperature :
- -40°C~150°C TJ
- Datasheets
- EPC2019
N-Channel Tape & Reel (TR) 50mOhm @ 7A, 5V +6V, -4V 270pF @ 100V 2.5nC @ 5V 200V Die
EPC2019 Overview
The input capacitance parameter, CI, is defined as the capacitance between the input terminals of an op amp with either input grounded, and this device's maximal input capacitance is 270pF @ 100V.The drain current is the maximum continuous current the device can conduct, and the continuous drain current (ID) of this device is 8.5A. Operating this transistor requires a 200V drain to source voltage (Vdss).By using drive voltage (5V), this device helps reduce its overall power consumption.
EPC2019 Features
a continuous drain current (ID) of 8.5A
a 200V drain to source voltage (Vdss)
EPC2019 Applications
There are a lot of EPC
EPC2019 applications of single MOSFETs transistors.
- LCD/LED TV
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
