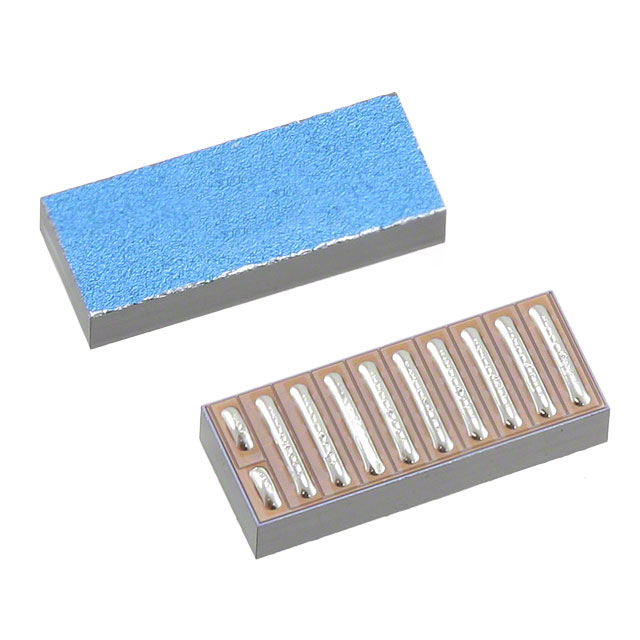

EPC2001
Or copy the link below:
- Mfr.Part #
- EPC2001
- Manufacturer
- EPC
- Package / Case
- Die
- Datasheet
- Download
- Description
- GANFET N-CH 100V 25A DIE OUTLINE
- Stock
- 26,899
- In Stock ：
- 26,899
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPC
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Factory Lead Time :
- 12 Weeks
- Drive Voltage (Max Rds On,Min Rds On) :
- 5V
- Min Operating Temperature :
- -40°C
- Series :
- eGaN®
- Vgs(th) (Max) @ Id :
- 2.5V @ 5mA
- Mounting Type :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Max Operating Temperature :
- 150°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Vgs (Max) :
- +6V, -4V
- Rds On (Max) @ Id, Vgs :
- 7mOhm @ 25A, 5V
- Published :
- 2014
- Input Capacitance (Ciss) (Max) @ Vds :
- 900pF @ 50V
- Current - Continuous Drain (Id) @ 25°C :
- 36A Ta
- Input Capacitance :
- 900pF
- Supplier Device Package :
- Die Outline (11-Solder Bar)
- Drain to Source Voltage (Vdss) :
- 100V
- Mount :
- Surface Mount
- Operating Temperature :
- -40°C~150°C TJ
- Rds On Max :
- 7 mΩ
- RoHS Status :
- ROHS3 Compliant
- Continuous Drain Current (ID) :
- 36A
- FET Type :
- N-Channel
- Package / Case :
- Die
- Gate Charge (Qg) (Max) @ Vgs :
- 9nC @ 5V
- Datasheets
- EPC2001
N-Channel Tape & Reel (TR) 7mOhm @ 25A, 5V +6V, -4V 900pF @ 50V 9nC @ 5V 100V Die
EPC2001C Overview
An op amp's input capacitance is defined as the capacitance between both of its input terminals with either input grounded, and 900pF @ 50V is its maximum input capacitance.The drain current is the maximum continuous current the device can conduct, and this device has 36A continuous drain current (ID).For this transistor to work, a voltage 100V is required between drain and source (Vdss).Using drive voltage (5V), this device contributes to a reduction in overall power consumption.
EPC2001C Features
a continuous drain current (ID) of 36A
a 100V drain to source voltage (Vdss)
EPC2001C Applications
There are a lot of EPC
EPC2001C applications of single MOSFETs transistors.
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
