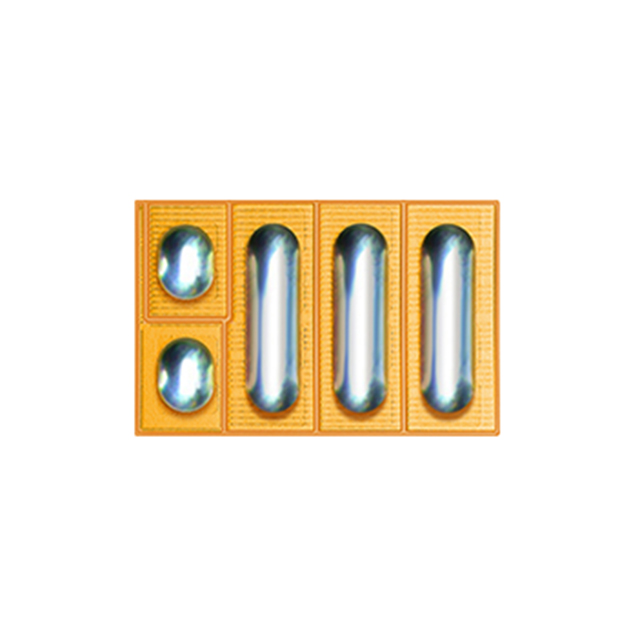

EPC2007
Or copy the link below:
- Mfr.Part #
- EPC2007
- Manufacturer
- EPC
- Package / Case
- Die
- Datasheet
- Download
- Description
- GANFET N-CH 100V 6A DIE OUTLINE
- Stock
- 8,316
- In Stock ：
- 8,316
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- EPC
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Input Capacitance (Ciss) (Max) @ Vds :
- 205pF @ 50V
- Current - Continuous Drain (Id) @ 25°C :
- 6A Ta
- Vgs (Max) :
- +6V, -5V
- Series :
- eGaN®
- Packaging :
- Cut Tape (CT)
- Package / Case :
- Die
- Mount :
- Surface Mount
- Rds On Max :
- 30 mΩ
- Vgs(th) (Max) @ Id :
- 2.5V @ 1.2mA
- Rds On (Max) @ Id, Vgs :
- 30mOhm @ 6A, 5V
- FET Type :
- N-Channel
- Continuous Drain Current (ID) :
- 6A
- Drain to Source Voltage (Vdss) :
- 100V
- Gate Charge (Qg) (Max) @ Vgs :
- 2.8nC @ 5V
- RoHS Status :
- RoHS Compliant
- Published :
- 2013
- Input Capacitance :
- 205pF
- Mounting Type :
- Surface Mount
- Operating Temperature :
- -40°C~125°C TJ
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Supplier Device Package :
- Die Outline (5-Solder Bar)
- Drive Voltage (Max Rds On,Min Rds On) :
- 5V
- Datasheets
- EPC2007
N-Channel Cut Tape (CT) 30mOhm @ 6A, 5V +6V, -5V 205pF @ 50V 2.8nC @ 5V 100V Die
EPC2007 Overview
A device's maximal input capacitance is 205pF @ 50V, which is defined as the capacitance between its input terminals with either input grounded.This device's continuous drain current (ID) is 6A, which represents the maximum continuous current it can conduct.This transistor requires a 100V drain to source voltage (Vdss).This device reduces its overall power consumption by using drive voltage (5V).
EPC2007 Features
a continuous drain current (ID) of 6A
a 100V drain to source voltage (Vdss)
EPC2007 Applications
There are a lot of EPC
EPC2007 applications of single MOSFETs transistors.
- Consumer Appliances
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
