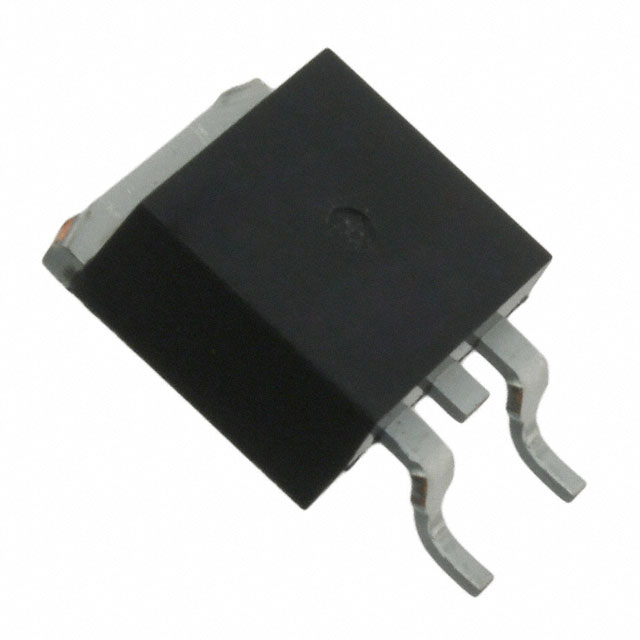

IXTT360N055T2

Manufacturer :

Littelfuse

Product Category :

Transistors - FETs, MOSFETs - Single

Tradename :

HiPerFET

Manufacturer :

IXYS

Drive Voltage (Max Rds On,Min Rds On) :

10V

Packaging :

Tube

Terminal Position :

Single

Package / Case :

TO-268-3, D3Pak (2 Leads + Tab), TO-268AA

Brand :

IXYS

Rds On (Max) @ Id, Vgs :

2.4m Ω @ 100A, 10V

Vgs(th) (Max) @ Id :

4V @ 250µA

Base Product Number :

IXTT360

JESD-30 Code :

R-PSSO-G2

Number of Elements :

1

Product Status :

Active

Gate Charge (Qg) (Max) @ Vgs :

330nC @ 10V

Package :

Tube

DS Breakdown Voltage-Min :

55V

Drain to Source Voltage (Vdss) :

55V

Qualification Status :

Not Qualified

Transistor Polarity :

N-Channel

Power Dissipation-Max :

935W Tc

Vgs (Max) :

±20V

RoHS Status :

ROHS3 Compliant

Maximum Operating Temperature :

+ 175 C

Mounting Style :

SMD/SMT

Channel Mode :

Enhancement

Product Type :

MOSFET

Pin Count :

4

Number of Channels :

1 Channel

Input Capacitance (Ciss) (Max) @ Vds :

20000pF @ 25V

Number of Terminations :

2

Mounting Type :

Surface Mount

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Additional Feature :

AVALANCHE RATED

Avalanche Energy Rating (Eas) :

960 mJ

Configuration :

SINGLE WITH BUILT-IN DIODE

Minimum Operating Temperature :

- 55 C

FET Feature :

--

Drain-source On Resistance-Max :

0.0024Ohm

FET Type :

N-Channel

Operating Temperature :

-55°C~175°C TJ

Continuous Drain Current (ID) :

360A

Published :

2009

Transistor Application :

SWITCHING

Reach Compliance Code :

Unknown

Terminal Finish :

PURE TIN

ECCN Code :

EAR99

Mount :

Surface Mount

Current - Continuous Drain (Id) @ 25°C :

360A Tc

RoHS :

Details

Factory Lead Time :

24 Weeks

JESD-609 Code :

e3

Product Category :

MOSFET

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Case Connection :

DRAIN

Operating Mode :

ENHANCEMENT MODE

Transistor Element Material :

SILICON

Power Dissipation (Max) :

935W (Tc)

Pulsed Drain Current-Max (IDM) :

900A

Series :

TrenchT2™

Terminal Form :

Gull wing

Supplier Device Package :

TO-268

Pbfree Code :

yes
