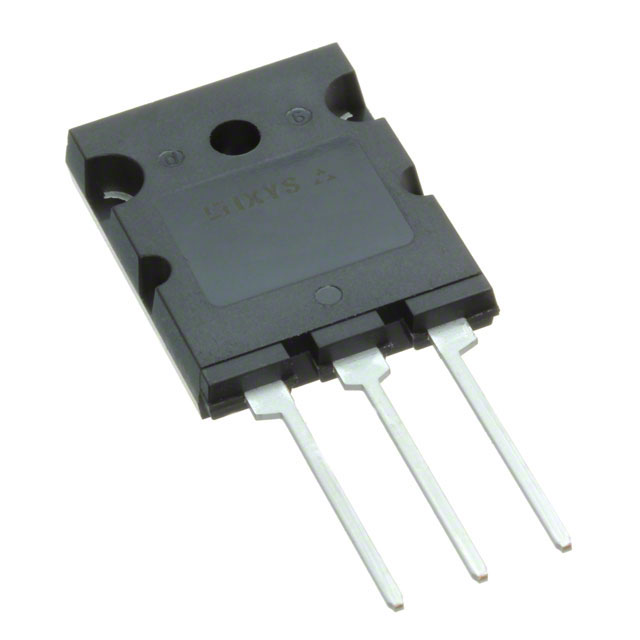

IXTK102N65X2

Manufacturer :

Littelfuse

Product Category :

Transistors - FETs, MOSFETs - Single

Number of Channels :

1 Channel

Power Dissipation-Max :

1040W Tc

Vgs(th) (Max) @ Id :

5V @ 250μA

FET Feature :

--

Factory Lead Time :

15 Weeks

Reach Compliance Code :

not_compliant

Drain to Source Voltage (Vdss) :

650V

FET Type :

N-Channel

Rise Time :

28 ns

Supplier Device Package :

TO-264 (IXTK)

Power Dissipation (Max) :

1040W (Tc)

Minimum Operating Temperature :

-55 °C

Height :

5.3mm

Product Status :

Active

Packaging :

Tube

Channel Mode :

Enhancement

Channel Type :

N

Gate Charge (Qg) (Max) @ Vgs :

152nC @ 10V

Package :

Tube

Package / Case :

TO-264-3, TO-264AA

Configuration :

Single

Number of Elements per Chip :

1

Base Product Number :

IXTK102

Mount :

Through Hole

Subcategory :

MOSFETs

Rds On (Max) @ Id, Vgs :

30m Ω @ 51A, 10V

RoHS Status :

ROHS3 Compliant

Mounting Style :

Through Hole

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Drive Voltage (Max Rds On,Min Rds On) :

10V

Manufacturer :

IXYS

Product Type :

MOSFET

Product Category :

MOSFET

Brand :

IXYS

Tradename :

HiPerFET

Transistor Polarity :

N-Channel

Package Type :

TO-264P

Vgs (Max) :

±30V

Pin Count :

3

Width :

26.3mm

Published :

2015

Mounting Type :

Through Hole

Series :

--

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Maximum Operating Temperature :

+150 °C

Current - Continuous Drain (Id) @ 25°C :

102A Tc

Continuous Drain Current (ID) :

102A

Length :

20.3mm

Operating Temperature :

-55°C~150°C TJ

ECCN Code :

EAR99

RoHS :

Details

Input Capacitance (Ciss) (Max) @ Vds :

10900pF @ 25V

Peak Reflow Temperature (Cel) :

NOT SPECIFIED
