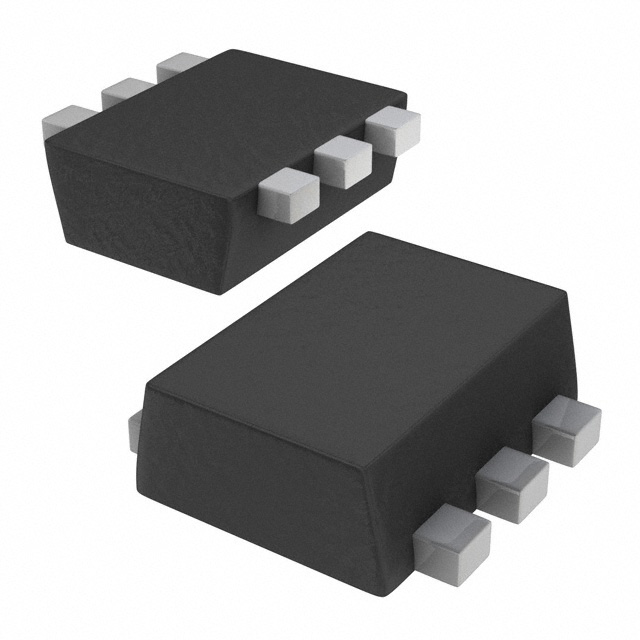

ZXTN26070CV-7
Or copy the link below:
- Mfr.Part #
- ZXTN26070CV-7
- Manufacturer
- Diodes Incorporated
- Package / Case
- SOT-563, SOT-666
- Datasheet
- Download
- Description
- TRANS NPN 70V 2A SOT666
- Stock
- 4,700
- In Stock ：
- 4,700
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diodes Incorporated
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Factory Lead Time :
- 12 Weeks
- Collector Base Voltage (VCBO) :
- 150V
- REACH SVHC :
- No SVHC
- Transistor Application :
- SWITCHING
- Terminal Position :
- Dual
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 200 @ 100mA 5V
- Number of Pins :
- 6
- Vce Saturation (Max) @ Ib, Ic :
- 330V @ 200mA, 2A
- Current - Collector Cutoff (Max) :
- 100nA ICBO
- Transition Frequency :
- 200MHz
- Collector Emitter Breakdown Voltage :
- 70V
- Terminal Finish :
- Matte Tin (Sn)
- Pbfree Code :
- yes
- Configuration :
- Single
- Pin Count :
- 6
- Mounting Type :
- Surface Mount
- Radiation Hardening :
- No
- Packaging :
- Tape and Reel (TR)
- Terminal Form :
- Flat
- Frequency - Transition :
- 200MHz
- Transistor Type :
- NPN
- Max Collector Current :
- 2A
- Polarity/Channel Type :
- NPN
- Transistor Element Material :
- SILICON
- ECCN Code :
- EAR99
- Collector Emitter Voltage (VCEO) :
- 330V
- Power - Max :
- 600mW
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Peak Reflow Temperature (Cel) :
- 260
- Number of Terminations :
- 6
- Time@Peak Reflow Temperature-Max (s) :
- 40
- Max Power Dissipation :
- 600mW
- Mount :
- Surface Mount
- Published :
- 2007
- Package / Case :
- SOT-563, SOT-666
- Number of Elements :
- 1
- Operating Temperature :
- -55°C~150°C TJ
- JESD-609 Code :
- e3
- Datasheets
- ZXTN26070CV-7
NPN -55°C~150°C TJ 100nA ICBO 1 Elements 6 Terminations SILICON NPN SOT-563, SOT-666 Tape & Reel (TR) Surface Mount
ZXTN26070CV-7 Overview
The DC current gain is the ratio of the base current to the collector current βdc = Ic/Ib and the DC current gain for this device is 200 @ 100mA 5V.Vce saturation means Ic is at its maximum value(saturated), and the vce saturation(Max) is 330V @ 200mA, 2A.A transition frequency of 200MHz is present in the part.Collector current can be as low as 2A volts at its maximum.
ZXTN26070CV-7 Features
the DC current gain for this device is 200 @ 100mA 5V
the vce saturation(Max) is 330V @ 200mA, 2A
a transition frequency of 200MHz
ZXTN26070CV-7 Applications
There are a lot of Diodes Incorporated
ZXTN26070CV-7 applications of single BJT transistors.
- Inverter
- Interface
- Driver
- Muting
