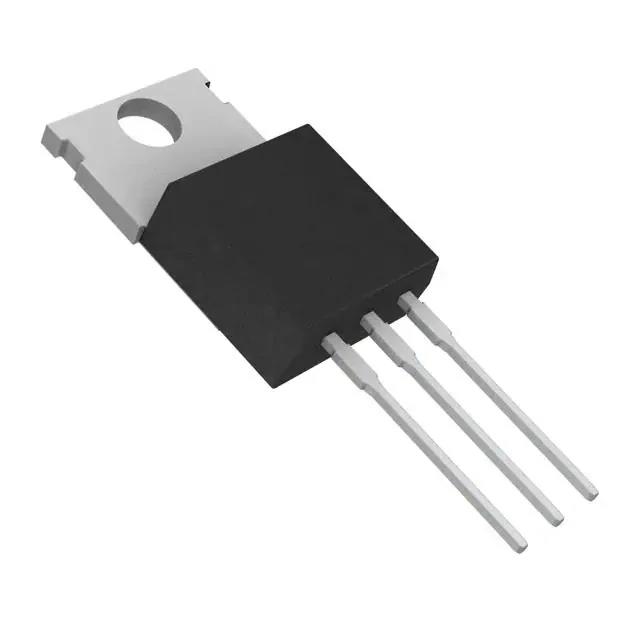

PSMN8R5-100PSFQ
Or copy the link below:
- Mfr.Part #
- PSMN8R5-100PSFQ
- Manufacturer
- NXP Semiconductors
- Package / Case
- TO-220-3
- Datasheet
- Download
- Description
- NEXPERIA PSMN8R5 - NEXTPOWER 100
- Stock
- 13,571
- In Stock ：
- 13,571
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NXP Semiconductors
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Current - Continuous Drain (Id) @ 25°C :
- 98A Ta
- Rds On (Max) @ Id, Vgs :
- 8.7m Ω @ 25A, 10V
- Drive Voltage (Max Rds On,Min Rds On) :
- 7V 10V
- Vgs (Max) :
- ±20V
- Vgs(th) (Max) @ Id :
- 4V @ 1mA
- FET Type :
- N-Channel
- Pin Count :
- 3
- Input Capacitance (Ciss) (Max) @ Vds :
- 3181pF @ 50V
- Power Dissipation-Max :
- 183W Ta
- Factory Lead Time :
- 27 Weeks
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Through Hole
- Operating Temperature :
- -55°C~175°C TJ
- Gate Charge (Qg) (Max) @ Vgs :
- 44.5nC @ 10V
- Drain to Source Voltage (Vdss) :
- 100V
- Packaging :
- Tube
- Package / Case :
- TO-220-3
- Datasheets
- PSMN8R5-100PSFQ
N-Channel Tube 8.7m Ω @ 25A, 10V ±20V 3181pF @ 50V 44.5nC @ 10V 100V TO-220-3
PSMN8R5-100PSFQ Overview
CI refers to the capacitance between two input terminals on an op amp with either input grounded, and this device's maximum input capacitance is 3181pF @ 50V.The transistor must receive a 100V drain to source voltage (Vdss) in order to function.In addition to reducing power consumption, this device uses drive voltage (7V 10V).
PSMN8R5-100PSFQ Features
a 100V drain to source voltage (Vdss)
PSMN8R5-100PSFQ Applications
There are a lot of Nexperia USA Inc.
PSMN8R5-100PSFQ applications of single MOSFETs transistors.
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
- PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
- Lighting, Server, Telecom and UPS.
