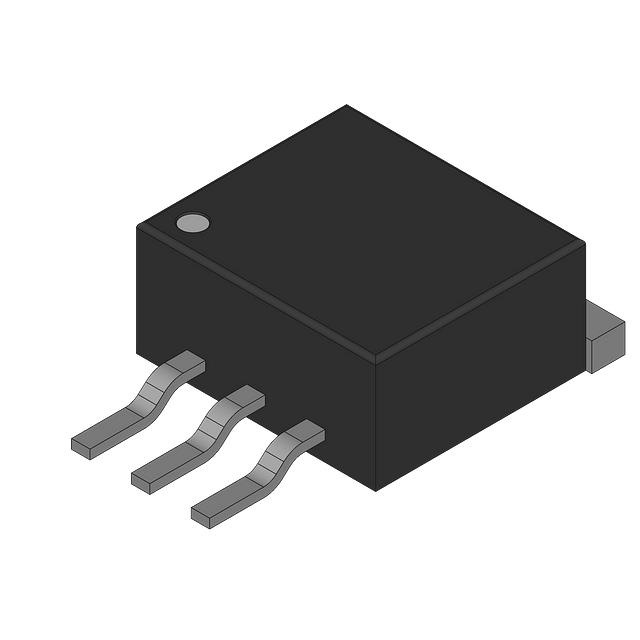

PSMN005-75B,118

Manufacturer :

Nexperia

Product Category :

Transistors - FETs, MOSFETs - Single

Qualification Status :

Not Qualified

Number of Terminations :

2

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

JESD-609 Code :

e3

Packaging :

Tape and Reel (TR)

Surface Mount :

yes

Transistor Application :

SWITCHING

Terminal Form :

Gull wing

Drain to Source Voltage (Vdss) :

75V

Vgs (Max) :

±20V

Number of Elements :

1

HTS Code :

8541.29.00.75

Drain Current-Max (Abs) (ID) :

75A

Package / Case :

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Input Capacitance (Ciss) (Max) @ Vds :

8250pF @ 25V

Operating Mode :

ENHANCEMENT MODE

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Configuration :

SINGLE WITH BUILT-IN DIODE

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pin Count :

3

DS Breakdown Voltage-Min :

75V

Drive Voltage (Max Rds On,Min Rds On) :

10V

Vgs(th) (Max) @ Id :

4V @ 1mA

Avalanche Energy Rating (Eas) :

500 mJ

Gate Charge (Qg) (Max) @ Vgs :

165nC @ 10V

Pulsed Drain Current-Max (IDM) :

400A

Published :

2001

Factory Lead Time :

12 Weeks

RoHS Status :

ROHS3 Compliant

Reach Compliance Code :

not_compliant

Transistor Element Material :

SILICON

ECCN Code :

EAR99

Current - Continuous Drain (Id) @ 25°C :

75A Tc

Terminal Position :

Single

Drain-source On Resistance-Max :

0.005ohm

FET Type :

N-Channel

Operating Temperature :

-55°C~175°C TJ

Rds On (Max) @ Id, Vgs :

5m Ω @ 25A, 10V

Power Dissipation-Max :

230W Tc

Series :

TrenchMOS™

JESD-30 Code :

R-PSSO-G2

Case Connection :

DRAIN

Terminal Finish :

Tin (Sn)
