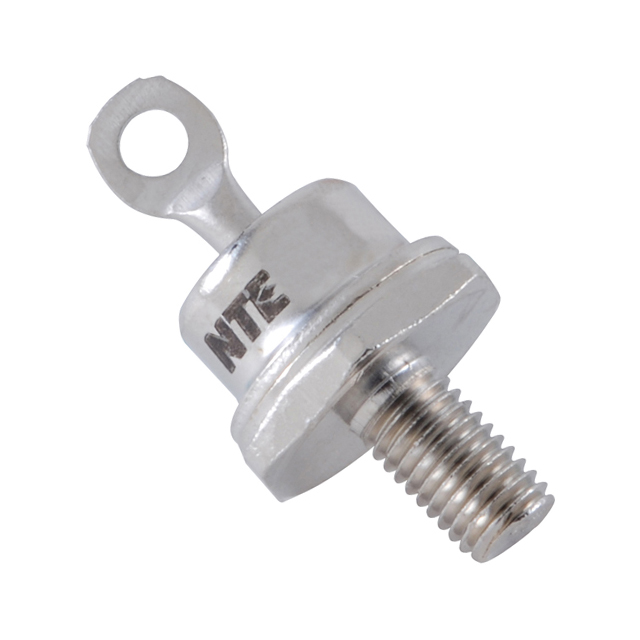

NTE6021

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Configuration :

Single

Product Status :

Active

Reach Compliance Code :

Unknown

Qualification Status :

Not Qualified

Diode Element Material :

SILICON

Package :

Bag

Number of Elements :

1

Non-rep Pk Forward Current-Max :

830 A

Current - Average Rectified (Io) :

60A

Capacitance @ Vr, F :

-

Terminal Position :

UPPER

RoHS :

Compliant

ECCN Code :

EAR99

Supplier Device Package :

DO-5

Number of Phases :

1

Operating Temperature - Junction :

-65°C ~ 175°C

JESD-30 Code :

O-MUPM-D1

Series :

-

Voltage - Forward (Vf) (Max) @ If :

1.4 V @ 60 A

Additional Feature :

LOW LEAKAGE CURRENT

HTS Code :

8541.10.00.80

Terminal Form :

Solder Lug

Current - Reverse Leakage @ Vr :

10 mA @ 40 V

Number of Terminals :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Package / Case :

DO-203AA, DO-5, Stud

Mounting Type :

Stud Mount

Case Connection :

ANODE

Diode Type :

Standard

Rep Pk Reverse Voltage-Max :

50 V

Manufacturer :

NTE Electronics

Output Current-Max :

60 A

Package Shape :

Round

Application :

GENERAL PURPOSE

Subcategory :

Rectifier Diodes

Speed :

Standard Recovery >500ns, > 200mA (Io)

Surface Mount :

No

Voltage - DC Reverse (Vr) (Max) :

40 V
