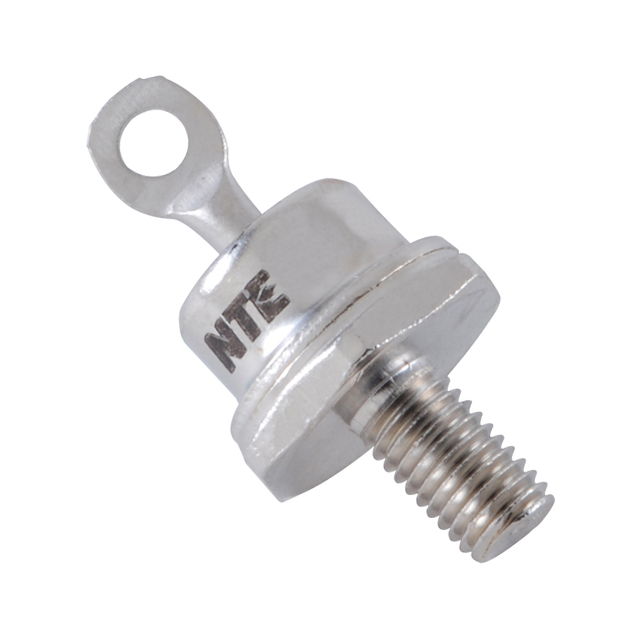

NTE6002

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

HTS Code :

8541.10.00.80

Product Status :

Active

Voltage - DC Reverse (Vr) (Max) :

1000 V

Terminal Position :

UPPER

Number of Elements :

1

Application :

Power

Output Current-Max :

40 A

Series :

-

Package :

Bag

Capacitance @ Vr, F :

-

Case Connection :

CATHODE

ECCN Code :

EAR99

Subcategory :

Rectifier Diodes

Operating Temperature - Junction :

-65°C ~ 190°C

Current - Average Rectified (Io) :

40A

JESD-30 Code :

O-MUPM-D1

Number of Phases :

1

Number of Terminals :

1

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Rep Pk Reverse Voltage-Max :

1000 V

Configuration :

Single

Current - Reverse Leakage @ Vr :

9 mA @ 1000 V

Terminal Form :

Solder Lug

Reach Compliance Code :

Unknown

Non-rep Pk Forward Current-Max :

586 A

Surface Mount :

No

Diode Type :

Standard

Speed :

Standard Recovery >500ns, > 200mA (Io)

Package / Case :

DO-203AA, DO-5, Stud

Voltage - Forward (Vf) (Max) @ If :

1.3 V @ 40 A

Manufacturer :

NTE Electronics

Diode Element Material :

SILICON

Package Shape :

Round

Qualification Status :

Not Qualified

Supplier Device Package :

DO-5

Mounting Type :

Stud Mount
