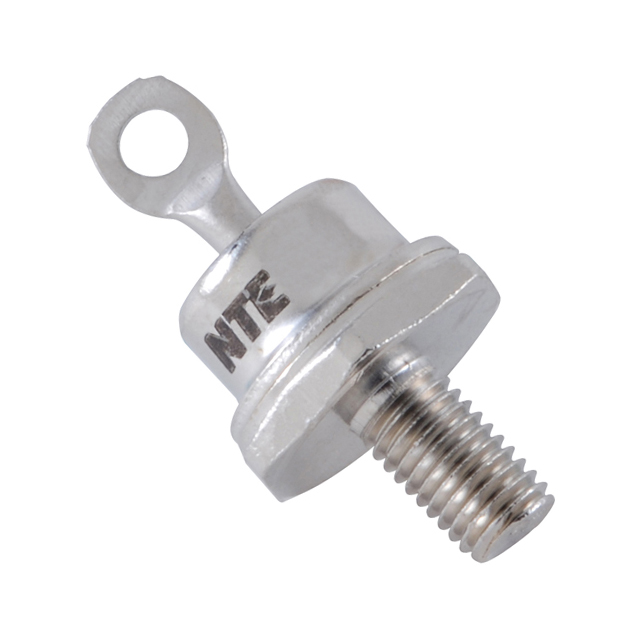

NTE6010

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Peak Forward Voltage :

1.4(V)

Operating Temperature - Junction :

-65°C ~ 160°C

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Supplier Device Package :

DO-5

Peak Reverse Recovery Time :

400(ns)

Peak Rep Rev Volt :

600(V)

Peak Non-Repetitive Surge Current :

350(A)

Rectifier Type :

Switching Diode

Reverse Recovery Time (trr) :

400 ns

Package / Case :

DO-203AA, DO-5, Stud

Maximum Forward Current :

40000(mA)

Package Type :

DO-5

Mounting Type :

Stud Mount

Mounting :

Stud

Product Status :

Active

Voltage - Forward (Vf) (Max) @ If :

1.4 V @ 40 A

Voltage - DC Reverse (Vr) (Max) :

600 V

Package :

Bag

Configuration :

Single

Rad Hardened :

No

Current - Average Rectified (Io) :

40A

Series :

-

Diode Type :

Standard

Operating Temp Range :

-65C to 160C

Pin Count :

2

Manufacturer :

NTE Electronics

Capacitance @ Vr, F :

-

Operating Temperature Classification :

Military

Peak Reverse Current :

50(uA)

Current - Reverse Leakage @ Vr :

50 µA @ 600 V
