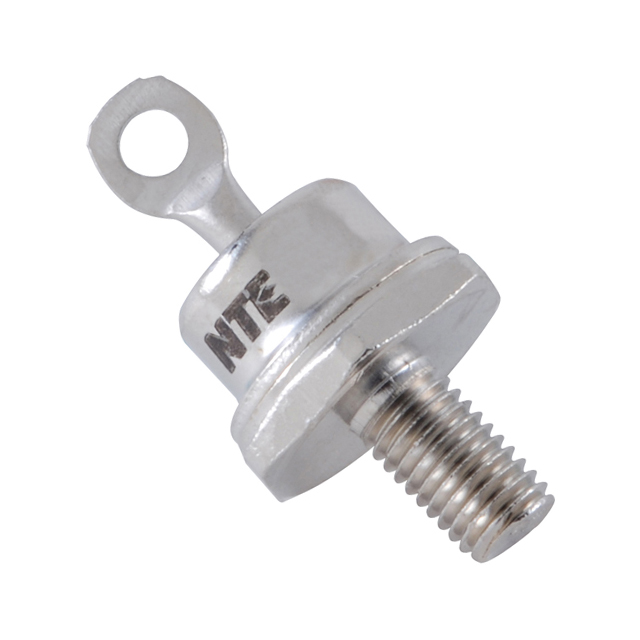

NTE6006

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Package Shape :

Round

Reach Compliance Code :

Unknown

Supplier Device Package :

DO-5

Number of Elements :

1

Subcategory :

Rectifier Diodes

Current - Average Rectified (Io) :

40A

Operating Temperature - Junction :

-65°C ~ 160°C

Non-rep Pk Forward Current-Max :

350 A

Configuration :

Single

Diode Type :

Standard

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Diode Element Material :

SILICON

Capacitance @ Vr, F :

-

JESD-30 Code :

O-MUPM-D1

JEDEC-95 Code :

DO-5

Qualification Status :

Not Qualified

Surface Mount :

No

Package :

Bag

Application :

EFFICIENCY

Voltage - Forward (Vf) (Max) @ If :

1.4 V @ 40 A

Product Status :

Active

Case Connection :

CATHODE

Number of Phases :

1

Reverse Recovery Time-Max :

0.2 μs

Voltage - DC Reverse (Vr) (Max) :

200 V

HTS Code :

8541.10.00.80

Package / Case :

DO-203AA, DO-5, Stud

Series :

-

Terminal Position :

UPPER

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Rep Pk Reverse Voltage-Max :

200 V

Current - Reverse Leakage @ Vr :

50 μA @ 200 V

Mounting Type :

Stud Mount

ECCN Code :

EAR99

Additional Feature :

FREE WHEELING DIODE

Number of Terminals :

1

Manufacturer :

NTE Electronics

Output Current-Max :

40 A

Reverse Recovery Time (trr) :

400 ns

Terminal Form :

Solder Lug
