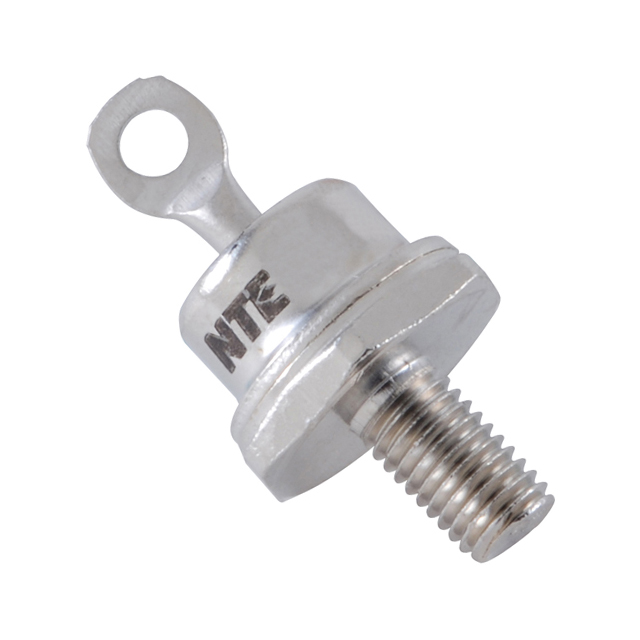

NTE6008
- Mfr.Part #
- NTE6008
- Manufacturer
- NTE Electronics, Inc.
- Package / Case
- DO-203AA, DO-5, Stud
- Datasheet
- Download
- Description
- R-400V 40A FAST REC CC
- Stock
- 33
- In Stock :
- 33
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NTE Electronics, Inc.
- Product Category :
- Diodes - Rectifiers - Single
- HTS Code :
- 8541.10.00.80
- Manufacturer :
- NTE Electronics
- Operating Temp Range :
- -65C to 160C
- Maximum Forward Current :
- 40000(mA)
- Peak Forward Voltage :
- 1.4(V)
- Package / Case :
- DO-203AA, DO-5, Stud
- Reverse Recovery Time (trr) :
- 400 ns
- Rev Recov Time :
- 400(ns)
- Speed :
- Fast Recovery =< 500ns, > 200mA (Io)
- Package Shape :
- Round
- Capacitance @ Vr, F :
- -
- Package :
- Bag
- Mounting :
- Stud
- Configuration :
- Single
- Diode Element Material :
- SILICON
- Reach Compliance Code :
- Unknown
- Current - Average Rectified (Io) :
- 40A
- Terminal Form :
- Solder Lug
- Series :
- -
- Forward Current :
- 40000(mA)
- Rad Hardened :
- No
- Rectifier Type :
- Switching Diode
- Pin Count :
- 2
- Rep Pk Reverse Voltage-Max :
- 400 V
- Peak Non-Repetitive Surge Current :
- 350(A)
- Operating Temperature Classification :
- Military
- ECCN Code :
- EAR99
- Number of Phases :
- 1
- Voltage - DC Reverse (Vr) (Max) :
- 400 V
- Surface Mount :
- No
- Non-rep Pk Forward Current-Max :
- 350 A
- Peak Reverse Recovery Time :
- 400(ns)
- Subcategory :
- Rectifier Diodes
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Output Current-Max :
- 40 A
- Case Connection :
- CATHODE
- Peak Reverse Current :
- 50(uA)
- Additional Feature :
- FREE WHEELING DIODE
- JEDEC-95 Code :
- DO-5
- Current - Reverse Leakage @ Vr :
- 50 µA @ 400 V
- Product Status :
- Active
- Reverse Recovery Time-Max :
- 0.2 μs
- Diode Type :
- Standard
- Package Type :
- DO-5
- Supplier Device Package :
- DO-5
- Mounting Type :
- Stud Mount
- Voltage - Forward (Vf) (Max) @ If :
- 1.4 V @ 40 A
- Qualification Status :
- Not Qualified
- Number of Elements :
- 1
- JESD-30 Code :
- O-MUPM-D1
- Terminal Position :
- UPPER
- Rev Curr :
- 50(uA)
- Number of Terminals :
- 1
- Application :
- EFFICIENCY
- Operating Temperature - Junction :
- -65°C ~ 160°C
- Forward Voltage :
- 1.4(V)
- Peak Rep Rev Volt :
- 400(V)
- Datasheets
- NTE6008
NTE6008 Documents

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.4 V @ 40 A -65°C ~ 160°C 50 µA @ 400 V DO-203AA, DO-5, Stud Stud Mount
NTE6008 Overview
A forward current of 40000(mA) is allowed.In terms of output current, the maximum value is 40 A.The datasheets show a peak reverse of 50(uA), as shown in the data chart.
NTE6008 Features
40 A is the maximum value
the peak reverse is 50(uA)
NTE6008 Applications
There are a lot of NTE Electronics, Inc.
NTE6008 applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
