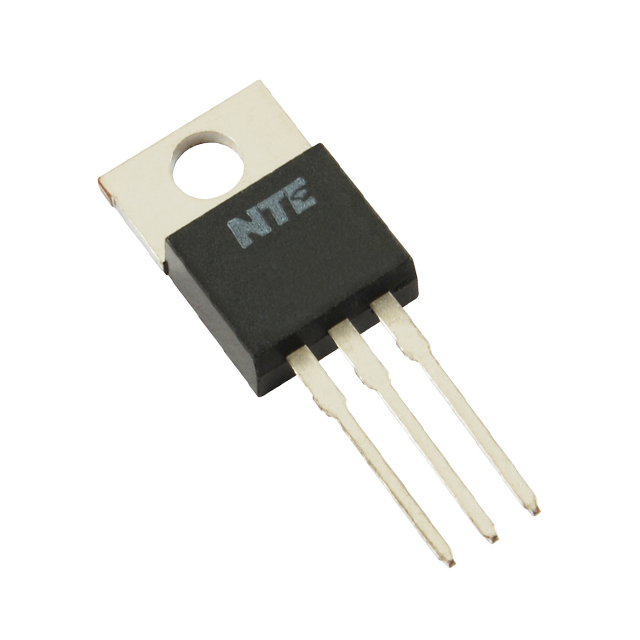

NTE6013

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Reach Compliance Code :

Unknown

Output Current-Max :

12.7 A

Terminal Form :

THROUGH-HOLE

Capacitance @ Vr, F :

-

JESD-30 Code :

R-PSFM-T3

JEDEC-95 Code :

TO-220AB

Number of Terminals :

3

Pin Count :

3

Mounting Type :

Through Hole

Package / Case :

TO-220-3 Isolated Tab

Current - Reverse Leakage @ Vr :

1 mA @ 600 V

Terminal Position :

Single

Series :

-

HTS Code :

8541.10.00.80

Package Shape :

RECTANGULAR

Voltage - DC Reverse (Vr) (Max) :

600 V

Application :

GENERAL PURPOSE

Manufacturer :

NTE Electronics

Configuration :

Single

Diode Type :

Standard

Surface Mount :

No

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Qualification Status :

Not Qualified

Product Status :

Active

Current - Average Rectified (Io) :

12.7A

Number of Elements :

1

Non-rep Pk Forward Current-Max :

300 A

Case Connection :

Isolated

Operating Temperature - Junction :

-40°C ~ 125°C

Additional Feature :

High Reliability

Rep Pk Reverse Voltage-Max :

600 V

Speed :

Standard Recovery >500ns, > 200mA (Io)

Diode Element Material :

SILICON

Package :

Bag

Supplier Device Package :

ITO-220AB

Subcategory :

Rectifier Diodes

Number of Phases :

1

ECCN Code :

EAR99
