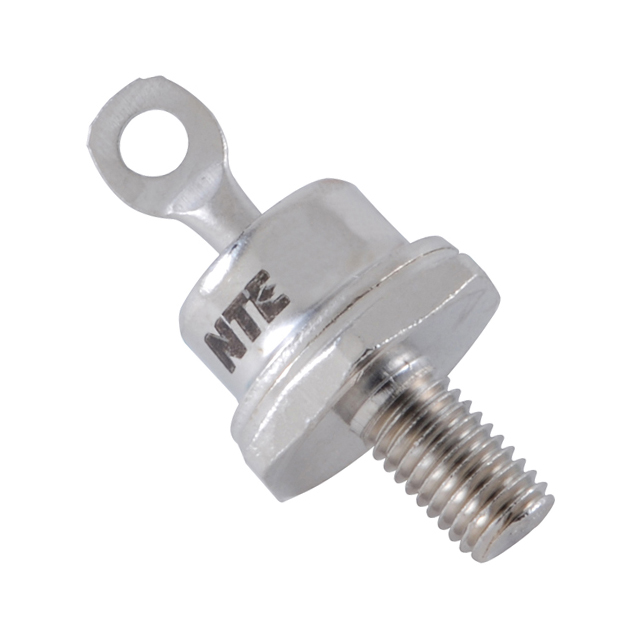

NTE6007

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Package / Case :

DO-203AA, DO-5, Stud

Terminal Position :

UPPER

Mount :

Stud

Output Current-Max :

40 A

Application :

EFFICIENCY

Min Operating Temperature :

-65 °C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Max Operating Temperature :

160 °C

Qualification Status :

Not Qualified

Diode Element Material :

SILICON

Capacitance @ Vr, F :

-

Reverse Recovery Time-Max :

0.2 μs

Number of Pins :

2

Mounting Type :

Stud Mount

Peak Non-Repetitive Surge Current :

350 A

Number of Phases :

1

JESD-30 Code :

O-MUPM-D1

ECCN Code :

EAR99

Element Configuration :

Single

Supplier Device Package :

DO-5

Non-rep Pk Forward Current-Max :

350 A

JEDEC-95 Code :

DO-5

Manufacturer :

NTE Electronics

Voltage - DC Reverse (Vr) (Max) :

200 V

Number of Elements :

1

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Max Repetitive Reverse Voltage (Vrrm) :

200 V

Reverse Recovery Time (trr) :

400 ns

Number of Terminals :

1

Operating Temperature - Junction :

-65°C ~ 160°C

Product Status :

Active

Configuration :

Single

Additional Feature :

FREE WHEELING DIODE

Rep Pk Reverse Voltage-Max :

200 V

Package Shape :

Round

Package :

Bag

Peak Reverse Current :

50 µA

Reverse Recovery Time :

400 ns

HTS Code :

8541.10.00.80

RoHS :

Compliant

Case Connection :

ANODE

Forward Current :

40 A

Series :

-

Current - Average Rectified (Io) :

40A

Current - Reverse Leakage @ Vr :

50 μA @ 200 V

Reach Compliance Code :

Unknown

Surface Mount :

No

Diode Type :

Standard

Subcategory :

Rectifier Diodes

Terminal Form :

Solder Lug

Voltage - Forward (Vf) (Max) @ If :

1.4 V @ 40 A
