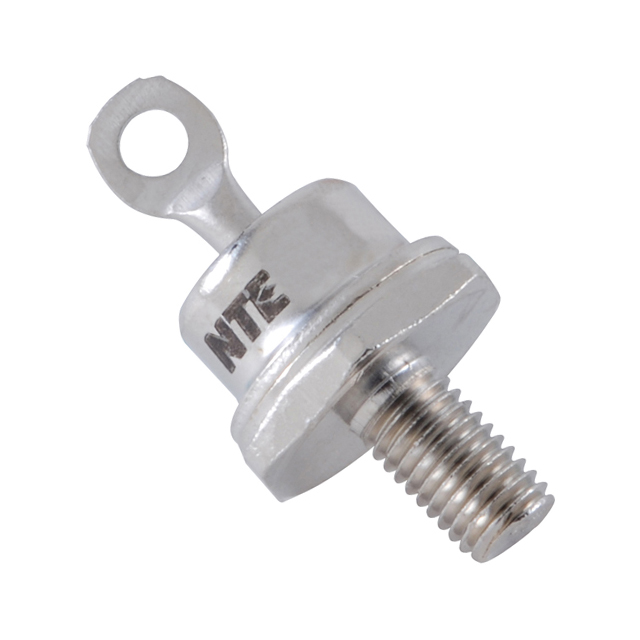

NTE6003

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Mounting :

Stud

Peak Rep Rev Volt :

1000(V)

Subcategory :

Rectifier Diodes

Forward Voltage :

1.3(V)

Diode Element Material :

SILICON

Pin Count :

2

Series :

-

Rep Pk Reverse Voltage-Max :

1000 V

Package / Case :

DO-203AA, DO-5, Stud

Number of Terminals :

1

Peak Reverse Current :

9000(uA)

JESD-30 Code :

O-MUPM-D1

Current - Reverse Leakage @ Vr :

9 mA @ 1000 V

Surface Mount :

No

Operating Temperature - Junction :

-65°C ~ 190°C

Number of Phases :

1

Application :

Power

Mounting Type :

Stud Mount

Package Type :

DO-5

Number of Elements :

1

Current - Average Rectified (Io) :

40A

Manufacturer :

NTE Electronics

Voltage - DC Reverse (Vr) (Max) :

1000 V

Terminal Form :

Solder Lug

Voltage - Forward (Vf) (Max) @ If :

1.3 V @ 40 A

Maximum Forward Current :

40000(mA)

Peak Non-Repetitive Surge Current :

500(A)

Supplier Device Package :

DO-5

Output Current-Max :

40 A

Qualification Status :

Not Qualified

Package :

Bag

Speed :

Standard Recovery >500ns, > 200mA (Io)

Operating Temp Range :

-65C to 190C

Configuration :

Single

Rad Hardened :

No

Peak Forward Voltage :

1.3(V)

Terminal Position :

UPPER

ECCN Code :

EAR99

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Non-rep Pk Forward Current-Max :

586 A

Rev Curr :

9000(uA)

Forward Current :

40000(mA)

Reach Compliance Code :

Unknown

HTS Code :

8541.10.00.80

Capacitance @ Vr, F :

-

Package Shape :

Round

Case Connection :

ANODE

Diode Type :

Standard

Product Status :

Active

Operating Temperature Classification :

Military
