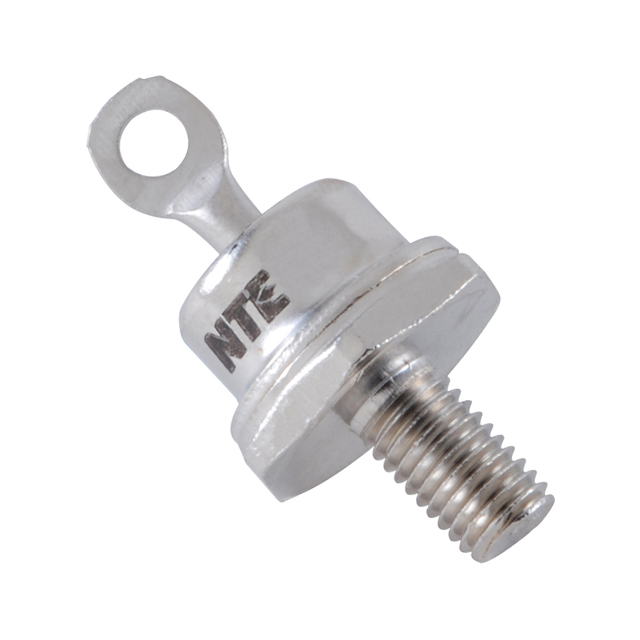

NTE6005

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Surface Mount :

No

Subcategory :

Rectifier Diodes

Package / Case :

DO-203AA, DO-5, Stud

Maximum Forward Current :

40000(mA)

Rep Pk Reverse Voltage-Max :

1600 V

Number of Terminals :

1

Mounting Type :

Stud Mount

Output Current-Max :

40 A

Reach Compliance Code :

Unknown

Voltage - DC Reverse (Vr) (Max) :

1600 V

Rad Hardened :

No

Speed :

Standard Recovery >500ns, > 200mA (Io)

Forward Voltage :

1.3(V)

Configuration :

Single

Number of Elements :

1

Qualification Status :

Not Qualified

Voltage - Forward (Vf) (Max) @ If :

1.3 V @ 40 A

Diode Type :

Standard

Product Status :

Active

Peak Reverse Current :

9000(uA)

Application :

Power

Peak Forward Voltage :

1.3(V)

Non-rep Pk Forward Current-Max :

586 A

Pin Count :

2

Terminal Position :

UPPER

Package Shape :

Round

Package :

Bag

Series :

-

Current - Average Rectified (Io) :

40A

Manufacturer :

NTE Electronics

Operating Temp Range :

-65C to 190C

Supplier Device Package :

DO-5

Forward Current :

40000(mA)

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Case Connection :

ANODE

Capacitance @ Vr, F :

-

ECCN Code :

EAR99

Package Type :

DO-5

Mounting :

Stud

JESD-30 Code :

O-MUPM-D1

Peak Rep Rev Volt :

1600(V)

Current - Reverse Leakage @ Vr :

9 mA @ 1600 V

Terminal Form :

Solder Lug

HTS Code :

8541.10.00.80

Diode Element Material :

SILICON

Peak Non-Repetitive Surge Current :

500(A)

Operating Temperature - Junction :

-65°C ~ 190°C

Rev Curr :

9000(uA)

Number of Phases :

1

Operating Temperature Classification :

Military
