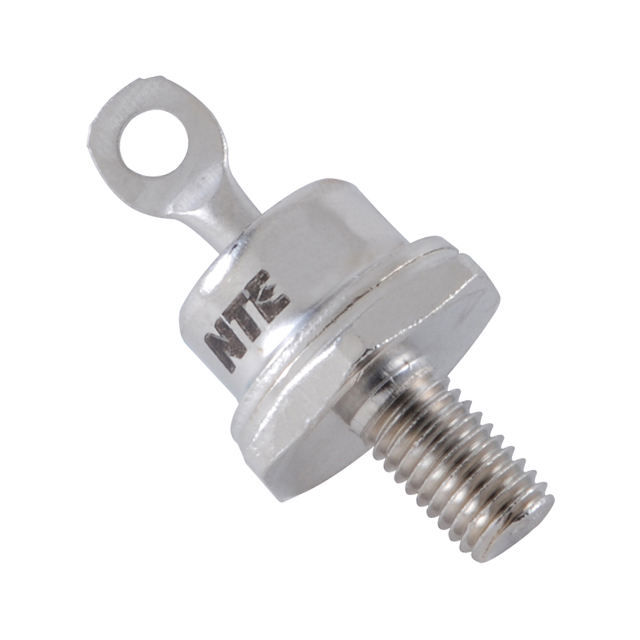

NTE6009

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Manufacturer :

NTE Electronics

Voltage - DC Reverse (Vr) (Max) :

400 V

Qualification Status :

Not Qualified

Reverse Recovery Time (trr) :

400 ns

Mounting Type :

Stud Mount

Number of Elements :

1

Terminal Form :

Solder Lug

ECCN Code :

EAR99

Additional Feature :

FREE WHEELING DIODE

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Number of Pins :

2

HTS Code :

8541.10.00.80

Output Current-Max :

40 A

Current - Average Rectified (Io) :

40A

Peak Non-Repetitive Surge Current :

350 A

Surface Mount :

No

Forward Current :

40 A

Mount :

Stud

Diode Element Material :

SILICON

Reverse Recovery Time-Max :

0.2 μs

Supplier Device Package :

DO-5

RoHS :

Compliant

Rep Pk Reverse Voltage-Max :

400 V

Max Repetitive Reverse Voltage (Vrrm) :

400 V

Application :

EFFICIENCY

Series :

-

Product Status :

Active

Max Operating Temperature :

160 °C

Subcategory :

Rectifier Diodes

Terminal Position :

UPPER

Reverse Recovery Time :

400 ns

Number of Terminals :

1

Min Operating Temperature :

-65 °C

Package Shape :

Round

Package / Case :

DO-203AA, DO-5, Stud

JEDEC-95 Code :

DO-5

Current - Reverse Leakage @ Vr :

50 µA @ 400 V

Reach Compliance Code :

Unknown

Voltage - Forward (Vf) (Max) @ If :

1.4 V @ 40 A

Diode Type :

Standard

Number of Phases :

1

Operating Temperature - Junction :

-65°C ~ 160°C

Case Connection :

ANODE

JESD-30 Code :

O-MUPM-D1

Peak Reverse Current :

50 µA

Non-rep Pk Forward Current-Max :

350 A

Capacitance @ Vr, F :

-

Element Configuration :

Single

Package :

Bag

Configuration :

Single
