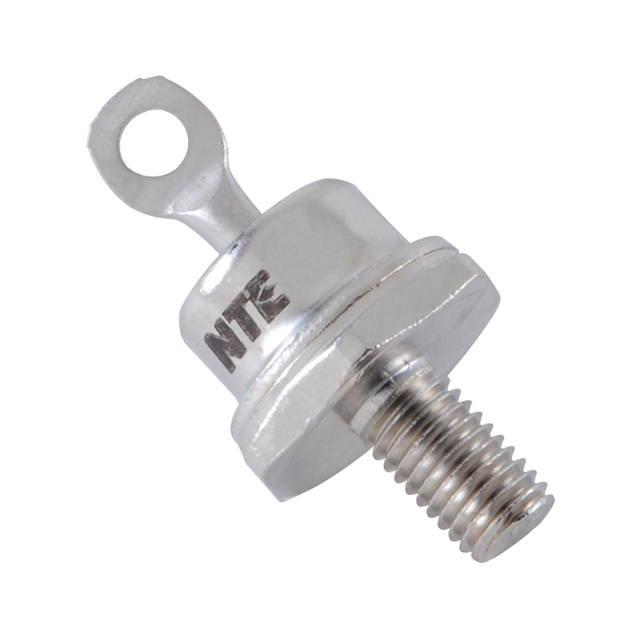

NTE6004

Manufacturer :

NTE Electronics, Inc.

Product Category :

Diodes - Rectifiers - Single

Application :

Power

HTS Code :

8541.10.00.80

Qualification Status :

Not Qualified

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Manufacturer :

NTE Electronics

Rep Pk Reverse Voltage-Max :

1600 V

Package Shape :

Round

Output Current-Max :

40 A

Terminal Position :

UPPER

Case Connection :

CATHODE

Package :

Bag

Capacitance @ Vr, F :

-

Non-rep Pk Forward Current-Max :

586 A

JESD-30 Code :

O-MUPM-D1

Product Status :

Active

Diode Element Material :

SILICON

Subcategory :

Rectifier Diodes

Surface Mount :

No

Number of Phases :

1

Package / Case :

DO-203AA, DO-5, Stud

Voltage - DC Reverse (Vr) (Max) :

1600 V

Voltage - Forward (Vf) (Max) @ If :

1.3 V @ 40 A

Diode Type :

Standard

Number of Terminals :

1

Speed :

Standard Recovery >500ns, > 200mA (Io)

Supplier Device Package :

DO-5

Current - Reverse Leakage @ Vr :

9 mA @ 1600 V

Terminal Form :

Solder Lug

Mounting Type :

Stud Mount

Reach Compliance Code :

Unknown

Current - Average Rectified (Io) :

40A

Configuration :

Single

ECCN Code :

EAR99

Operating Temperature - Junction :

-65°C ~ 190°C

Series :

-

Number of Elements :

1
