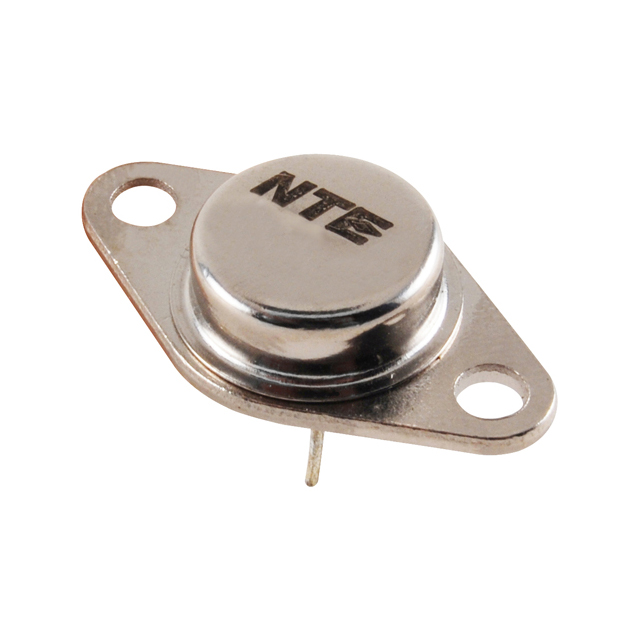

NTE275

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

JESD-30 Code :

O-MBFM-P2

Frequency - Transition :

-

DC Current Gain-Min (hFE) :

100

Voltage - Collector Emitter Breakdown (Max) :

80 V

Case Connection :

COLLECTOR

Vce Saturation (Max) @ Ib, Ic :

3V @ 40mA, 4A

Package / Case :

TO-213AA, TO-66-2

Terminal Form :

PIN/PEG

Transistor Element Material :

SILICON

Series :

-

Current - Collector Cutoff (Max) :

500μA

Transistor Type :

PNP - Darlington

Reach Compliance Code :

Unknown

Number of Elements :

1

Power Dissipation-Max (Abs) :

50 W

Configuration :

Single

Current - Collector (Ic) (Max) :

4 A

DC Current Gain (hFE) (Min) @ Ic, Vce :

750 @ 2A, 3V

Surface Mount :

No

Terminal Position :

BOTTOM

Product Status :

Active

Mounting Type :

Through Hole

Collector Current-Max (IC) :

4 A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Power - Max :

50 W

Package Shape :

Round

Package :

Bag

Polarity/Channel Type :

PNP

Collector-Emitter Voltage-Max :

80 V

Subcategory :

Other Transistors

Operating Temperature :

-65°C ~ 200°C (TJ)

Number of Terminals :

2

Power Dissipation Ambient-Max :

50 W

Qualification Status :

Not Qualified

Supplier Device Package :

TO-66

ECCN Code :

EAR99

Transistor Application :

SWITCHING

JEDEC-95 Code :

TO-66

Manufacturer :

NTE Electronics
