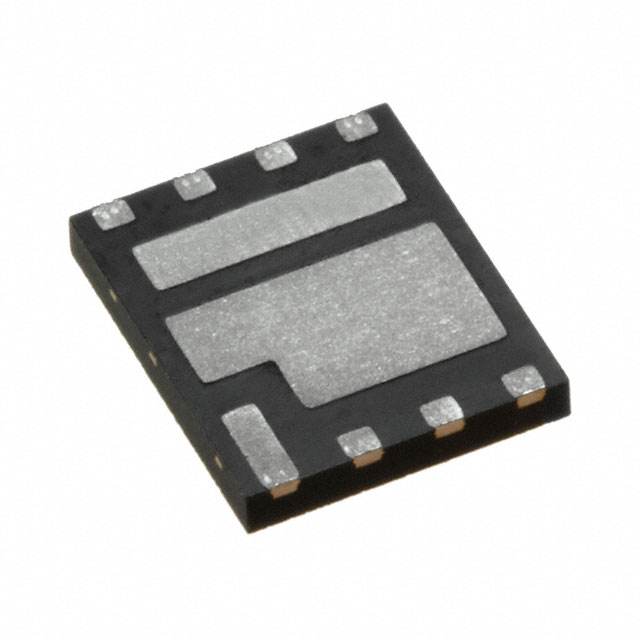

FDPC8014AS

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Arrays

Package / Case :

8-PowerWDFN

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Rds On (Max) @ Id, Vgs :

3.8m Ω @ 20A, 10V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Max Power Dissipation :

2.3W

ECCN Code :

EAR99

FET Feature :

Standard

JESD-609 Code :

e3

Number of Pins :

8

Terminal Finish :

Tin (Sn)

Element Configuration :

Dual

Pbfree Code :

yes

Gate Charge (Qg) (Max) @ Vgs :

35nC @ 10V

Current - Continuous Drain (Id) @ 25°C :

20A 40A

Packaging :

Tape and Reel (TR)

Continuous Drain Current (ID) :

40A

Drain to Source Voltage (Vdss) :

25V

Operating Temperature :

-55°C~150°C TJ

Factory Lead Time :

23 Weeks

Weight :

207.7333mg

Reach Compliance Code :

not_compliant

Vgs(th) (Max) @ Id :

2.5V @ 250μA

FET Type :

2 N-Channel (Dual) Asymmetrical

Input Capacitance (Ciss) (Max) @ Vds :

2375pF @ 13V

RoHS Status :

ROHS3 Compliant

Power - Max :

2.1W 2.3W

Mounting Type :

Surface Mount

Peak Reflow Temperature (Cel) :

260

Mount :

Surface Mount

Series :

PowerTrench®
