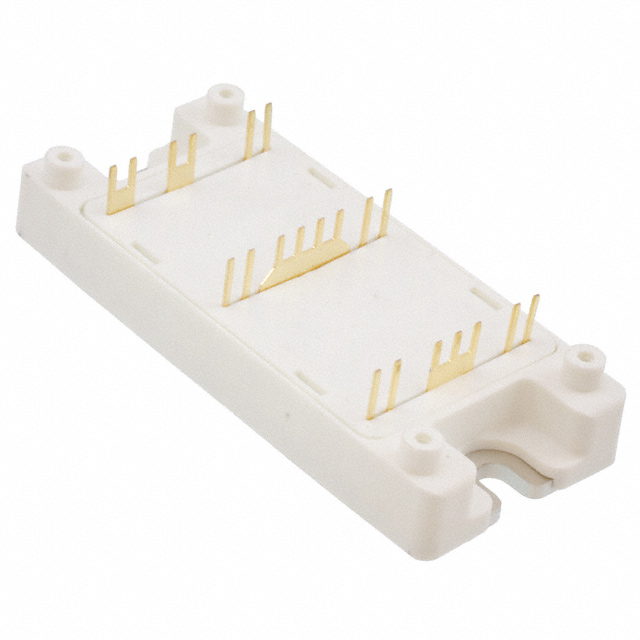

APTM50HM75STG

Manufacturer :

Microchip Technology

Product Category :

Transistors - FETs, MOSFETs - Arrays

Transistor Element Material :

SILICON

Pbfree Code :

yes

FET Feature :

Standard

Transistor Application :

SWITCHING

Vgs(th) (Max) @ Id :

5V @ 2.5mA

Power Dissipation :

357W

Pin Count :

14

ECCN Code :

EAR99

Published :

1999

Package / Case :

SP4

Gate Charge (Qg) (Max) @ Vgs :

123nC @ 10V

Gate to Source Voltage (Vgs) :

30V

FET Type :

4 N-Channel (H-Bridge)

Number of Elements :

4

Number of Terminations :

14

Factory Lead Time :

36 Weeks

Terminal Finish :

TIN SILVER COPPER

Operating Temperature :

-40°C~150°C TJ

Fall Time (Typ) :

77 ns

Turn-Off Delay Time :

87 ns

Terminal Form :

UNSPECIFIED

Turn On Delay Time :

18 ns

Packaging :

Bulk

DS Breakdown Voltage-Min :

500V

JESD-609 Code :

e1

Terminal Position :

UPPER

Additional Feature :

AVALANCHE RATED

RoHS Status :

RoHS Compliant

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Mount :

Chassis Mount, Screw

Drain to Source Voltage (Vdss) :

500V

Rise Time :

35ns

Rds On (Max) @ Id, Vgs :

90m Ω @ 23A, 10V

Max Power Dissipation :

357W

Radiation Hardening :

No

Avalanche Energy Rating (Eas) :

2500 mJ

Operating Mode :

ENHANCEMENT MODE

Input Capacitance (Ciss) (Max) @ Vds :

5600pF @ 25V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Pins :

4

Case Connection :

Isolated

Drain-source On Resistance-Max :

0.09Ohm

Continuous Drain Current (ID) :

46A

Mounting Type :

Chassis Mount
