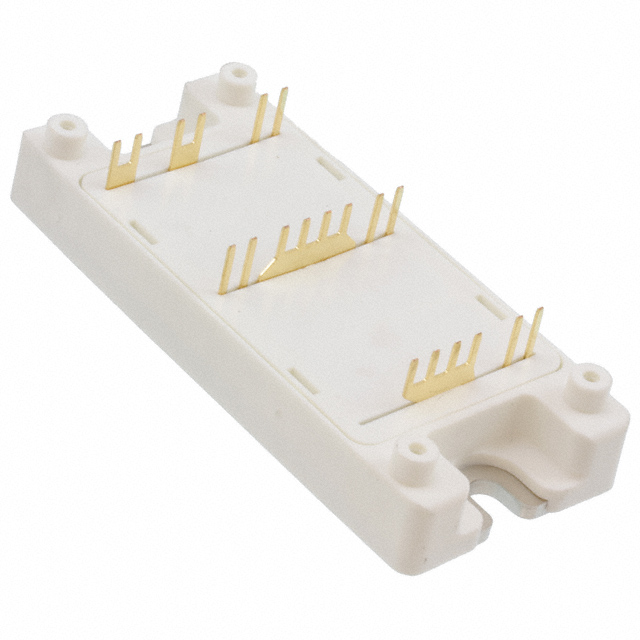

APTM100A18FTG

Manufacturer :

Microchip Technology

Product Category :

Transistors - FETs, MOSFETs - Arrays

FET Type :

2 N-Channel (Half Bridge)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Fall Time (Typ) :

40 ns

FET Technology :

METAL-OXIDE SEMICONDUCTOR

JESD-609 Code :

e1

Pbfree Code :

yes

ECCN Code :

EAR99

Avalanche Energy Rating (Eas) :

3000 mJ

Radiation Hardening :

No

Turn On Delay Time :

18 ns

Additional Feature :

AVALANCHE RATED

RoHS Status :

RoHS Compliant

Transistor Element Material :

SILICON

Operating Mode :

ENHANCEMENT MODE

Continuous Drain Current (ID) :

43A

Packaging :

Bulk

Input Capacitance (Ciss) (Max) @ Vds :

10400pF @ 25V

Rise Time :

12ns

Turn-Off Delay Time :

155 ns

Vgs(th) (Max) @ Id :

5V @ 5mA

Gate Charge (Qg) (Max) @ Vgs :

372nC @ 10V

Transistor Application :

SWITCHING

Package / Case :

SP4

Number of Terminations :

12

Rds On (Max) @ Id, Vgs :

210m Ω @ 21.5A, 10V

Case Connection :

Isolated

Factory Lead Time :

36 Weeks

Number of Pins :

4

Power Dissipation :

780W

Terminal Position :

UPPER

Published :

2006

Gate to Source Voltage (Vgs) :

30V

Terminal Form :

UNSPECIFIED

Pin Count :

12

FET Feature :

Standard

Drain to Source Voltage (Vdss) :

1000V 1kV

Mount :

Chassis Mount, Screw

Mounting Type :

Chassis Mount

DS Breakdown Voltage-Min :

1000V

Number of Elements :

2

Max Power Dissipation :

780W

Terminal Finish :

TIN SILVER COPPER

Operating Temperature :

-40°C~150°C TJ
