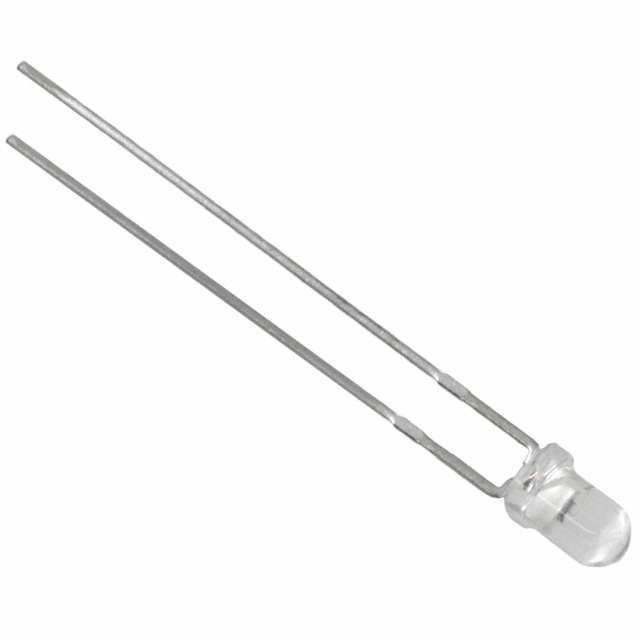

PD204-6C
Or copy the link below:
- Mfr.Part #
- PD204-6C
- Manufacturer
- Everlight Electronics
- Package / Case
- Radial
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 940NM RADIAL
- Stock
- 577
- In Stock ：
- 577
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Everlight Electronics
- Product Category :
- Optical Sensors - Photodiodes
- Packaging :
- Bulk
- Factory Lead Time :
- 15 Weeks
- Spectral Range :
- 400nm ~ 1100nm
- Fall Time (Typ) :
- 6 ns
- Mounting Type :
- Through Hole
- Configuration :
- Single
- RoHS Status :
- ROHS3 Compliant
- Dark Current :
- 10nA
- Number of Pins :
- 1
- Operating Temperature :
- -25°C~85°C
- Reverse Voltage (DC) :
- 32V
- Light Current-Nom :
- 0.0035mA
- Published :
- 2005
- Wavelength :
- 940nm
- Mount :
- Through Hole
- Shape :
- Round
- Max Reverse Voltage (DC) :
- 170V
- Active Area :
- 9mm2
- Package / Case :
- Radial
- Lens Style :
- Clear
- Max Power Dissipation :
- 250mW
- Size :
- 3mm
- Rise Time :
- 6ns
- Diode Type :
- Pin
- Number of Functions :
- 1
- Infrared Range :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- PD204-6C
Through Hole -25°C~85°C Bulk Wavelength: 940nm Radial 9mm2 10nA
PD204-6C Overview
As a protective measure, these photodiodes are packaged in the Bulk. To ensure safety, the photodiodes are packaged in Radial packages. Photodiodes in reverse-bias mode should not continuously exceed 170V. Photodiodes have a pin count of 1. It is generally recommended that the maximum heat released by photodiodes should be 250mW in a circuit. If your DC circuit has a reverse voltage of 32V, the photodiodes will work properly. It is possible for a photodiode to produce 10nA even without light input.
PD204-6C Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -25°C~85°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 400nm ~ 1100nm
PD204-6C Applications
There are a lot of Everlight Electronics Co Ltd
PD204-6C Photodiodes applications.
- Infrared data transmission
- Photo interrupters
- Shaft encoders
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
