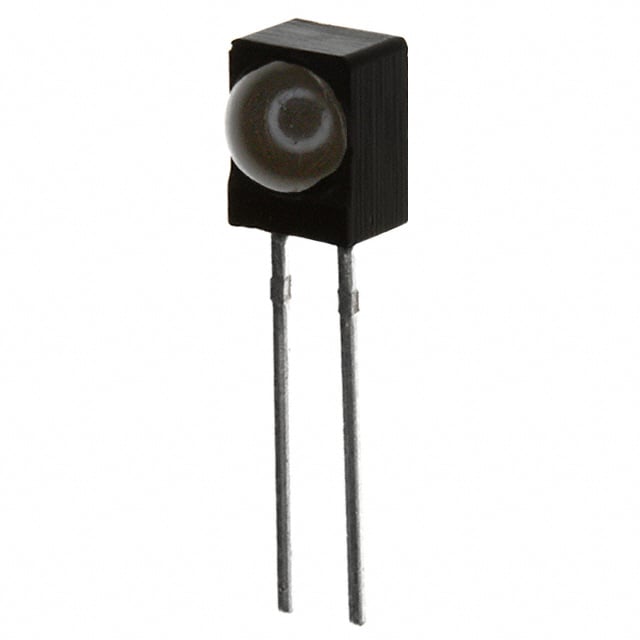

BPV22NF
Or copy the link below:
- Mfr.Part #
- BPV22NF
- Manufacturer
- Vishay
- Package / Case
- Radial, Side View
- Datasheet
- Download
- Description
- PHOTODIODE 780 TO 1050 NM
- Stock
- 86,077
- In Stock ：
- 86,077
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Optical Sensors - Photodiodes
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reverse Breakdown Voltage :
- 60V
- Fall Time (Typ) :
- 100 ns
- Viewing Angle :
- 120°
- Package / Case :
- Radial, Side View
- Lead Free :
- Lead Free
- Operating Temperature :
- -40°C~100°C
- Width :
- 5mm
- Dark Current :
- 2nA
- Number of Pins :
- 2
- Wavelength :
- 940nm
- Current - Dark (Typ) :
- 2nA
- Length :
- 4.5mm
- Lead Length :
- 26.5mm
- Active Area :
- 7.5mm2
- Published :
- 2005
- Reverse Voltage (DC) :
- 60V
- Spectral Range :
- 790nm ~ 1050nm
- Mounting Type :
- Through Hole
- Current Rating :
- 50A
- Forward Current :
- 50mA
- Packaging :
- Bulk
- Forward Voltage :
- 1.3V
- Rise Time :
- 100ns
- Height :
- 6mm
- Peak Wavelength :
- 940 nm
- Factory Lead Time :
- 12 Weeks
- Min Operating Temperature :
- -40°C
- REACH SVHC :
- Unknown
- Capacitance :
- 70pF
- Max Reverse Voltage (DC) :
- 60V
- Max Power Dissipation :
- 215mW
- Max Operating Temperature :
- 100°C
- Radiation Hardening :
- No
- Mount :
- PCB, Through Hole
- Diode Type :
- Pin
- Voltage - DC Reverse (Vr) (Max) :
- 60V
- Breakdown Voltage :
- 60V
- Power Dissipation :
- 215mW
- Datasheets
- BPV22NF
Through Hole -40°C~100°C Bulk Wavelength: 940nm Radial, Side View 60V 7.5mm2 2nA
BPV22NF Overview
In order to prevent damage, these photodiodes are packaged in the Bulk. It is necessary to enclose the photodiodes in Radial, Side View packages for safety purposes. As long as the photodiodes are operated in reverse- bias mode continuously, their maximum voltage is 60V. It is important that the reverse-bias voltage of the photodiodes do not exceed 60V continuously. There are 2 pins on the photodiodes. A circuit containing photodiodes can release 215mW heat. A photodiode should not operate at a temperature higher than 100°C. For photodiodes, the minimum operating temperature should be -40°C. It should be 60V for the reverse anode voltage of the photodiodes. For a circuit, the maximum heat released by the photodiodes should be 215mW. DC photodiodes can work properly under reverse voltages of 60V in the DC circuit. In order to get current to flow across a photodiode, there must be a voltage of 1.3V. For photodiodes to work, the breakdown voltage should be 60V. A photodiode conducts 2nA current without light input.
BPV22NF Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: PCB, Through Hole
Spectral Range: 790nm ~ 1050nm
Viewing Angle: 120°
BPV22NF Applications
There are a lot of Vishay Semiconductor Opto Division
BPV22NF Photodiodes applications.
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
- Pure UV-C Monitoring
