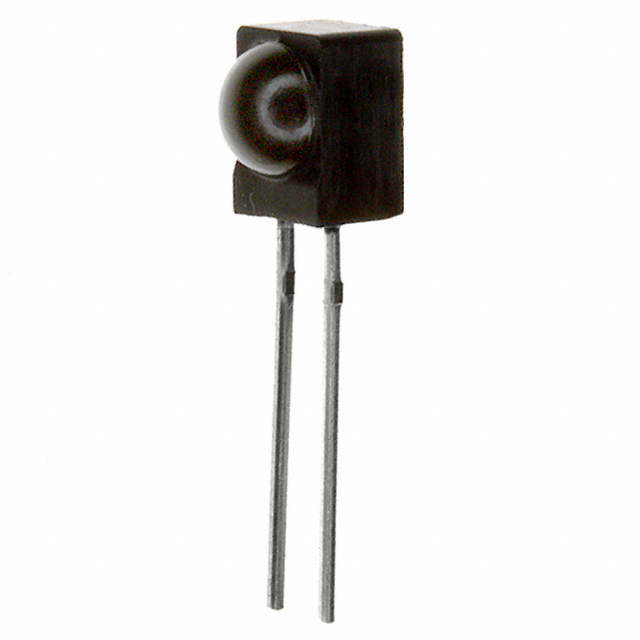

BPV23NF
Or copy the link below:
- Mfr.Part #
- BPV23NF
- Manufacturer
- Vishay
- Package / Case
- Radial, Side View
- Datasheet
- Download
- Description
- PHOTODIODE 870 TO 1050 NM
- Stock
- 2,487
- In Stock ：
- 2,487
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Optical Sensors - Photodiodes
- Forward Voltage :
- 1.3V
- Operating Temperature :
- -40°C~100°C
- Max Reverse Voltage (DC) :
- 60V
- Max Operating Temperature :
- 100°C
- Voltage - DC Reverse (Vr) (Max) :
- 60V
- Power Dissipation :
- 215mW
- Active Area :
- 4.4mm2
- Dark Current :
- 2nA
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Viewing Angle :
- 120°
- Mount :
- PCB, Through Hole
- Spectral Range :
- 870nm ~ 1050nm
- Mounting Type :
- Through Hole
- Forward Current :
- 50mA
- Lead Free :
- Lead Free
- Current - Dark (Typ) :
- 2nA
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Diode Type :
- Pin
- Radiation Hardening :
- No
- Number of Pins :
- 2
- Min Operating Temperature :
- -40°C
- Fall Time (Typ) :
- 70 ns
- Capacitance :
- 48pF
- Rise Time :
- 70ns
- Max Power Dissipation :
- 215mW
- Package / Case :
- Radial, Side View
- Reverse Breakdown Voltage :
- 60V
- Wavelength :
- 950nm
- Factory Lead Time :
- 7 Weeks
- REACH SVHC :
- Unknown
- Peak Wavelength :
- 940 nm
- Breakdown Voltage :
- 60V
- Reverse Voltage (DC) :
- 60V
- Datasheets
- BPV23NF
Through Hole -40°C~100°C Bulk Wavelength: 950nm Radial, Side View 60V 4.4mm2 2nA
BPV23NF Overview
To protect the photodiodes, they are packed in the Bulk. Photodiodes are protected by Radial, Side View packages in order to ensure their safety. When reverse-bias is applied continuously, the photodiodes are able to withstand only 60V voltage. A reverse-bias photodiode shouldn't exceed 60V continuously in reverse-bias mode. Pins 2 are present on the photodiodes. When the photodiodes are placed in a circuit, they may produce heat 215mW. While photodiodes are operating, the temperature should not exceed 100°C. But the photodiodes should operate at a temperature of -40°C. For the photodiodes, the reverse anode voltage should be 60V. Photodiodes should release 215mW heat in a circuit. If the reverse voltage is 60V, the photodiodes can operate properly in the DC circuit. Photodiodes are supposed to operate at 1.3V voltage. Ensure photodiodes work by setting the breakdown voltage to 60V. A photodiode occurs even at 2nA current without light input.
BPV23NF Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~100°C
Packaging: Bulk
Diode Type: PIN
Mount: PCB, Through Hole
Spectral Range: 870nm ~ 1050nm
Viewing Angle: 120°
BPV23NF Applications
There are a lot of Vishay Semiconductor Opto Division
BPV23NF Photodiodes applications.
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
- Heart Rate Monitoring
- Pulse Oximetry
- Pure UV-C Monitoring
- Sterilization Lamp Monitoring
- Optical Analytics
