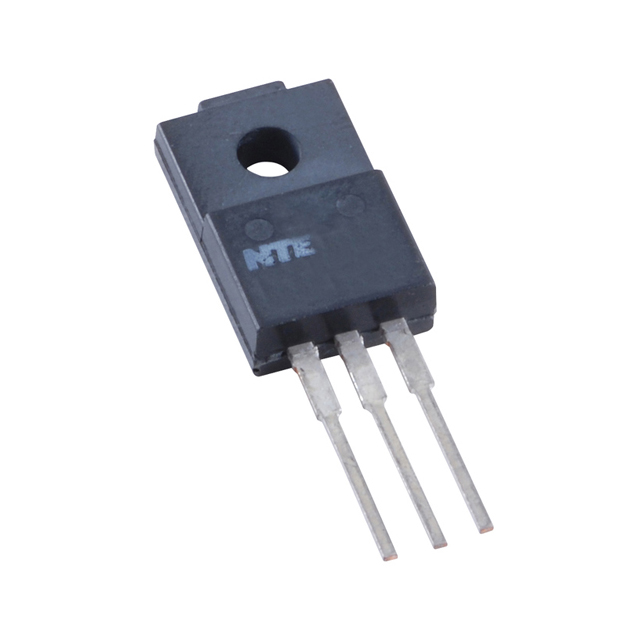

NTE2946

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - FETs, MOSFETs - Single

Qualification Status :

Not Qualified

Polarity/Channel Type :

N-Channel

Rds On (Max) @ Id, Vgs :

850mOhm @ 4A, 10V

Pin Count :

3

JEDEC-95 Code :

TO-220AB

Reach Compliance Code :

Unknown

FET Feature :

Standard

Additional Feature :

High Reliability

Number of Elements :

1

FET Type :

N-Channel

Terminal Form :

THROUGH-HOLE

Operating Temperature :

-55°C ~ 150°C (TJ)

Configuration :

SINGLE WITH BUILT-IN DIODE

Input Capacitance (Ciss) (Max) @ Vds :

1510 pF @ 25 V

Mounting Type :

Through Hole

Terminal Position :

Single

Series :

-

Transistor Application :

SWITCHING

Drive Voltage (Max Rds On, Min Rds On) :

10V

Manufacturer :

NTE Electronics

Number of Terminals :

3

Package :

Bag

JESD-30 Code :

R-PSFM-T3

Vgs(th) (Max) @ Id :

4V @ 250µA

Avalanche Energy Rating (Eas) :

161 mJ

Drain to Source Voltage (Vdss) :

500 V

Supplier Device Package :

TO-220 Full Pack

Surface Mount :

No

Power Dissipation (Max) :

40W (Tc)

Package / Case :

TO-220-3 Full Pack

Transistor Element Material :

SILICON

Case Connection :

Isolated

Technology :

MOSFET (Metal Oxide)

Operating Mode :

ENHANCEMENT MODE

Pulsed Drain Current-Max (IDM) :

32 A

FET Technology :

METAL-OXIDE SEMICONDUCTOR

Drain-source On Resistance-Max :

0.85 Ω

Package Shape :

RECTANGULAR

Vgs (Max) :

±20V

Product Status :

Active

Current - Continuous Drain (Id) @ 25°C :

4.6A

ECCN Code :

EAR99

Gate Charge (Qg) (Max) @ Vgs :

74 nC @ 10 V

DS Breakdown Voltage-Min :

500 V
