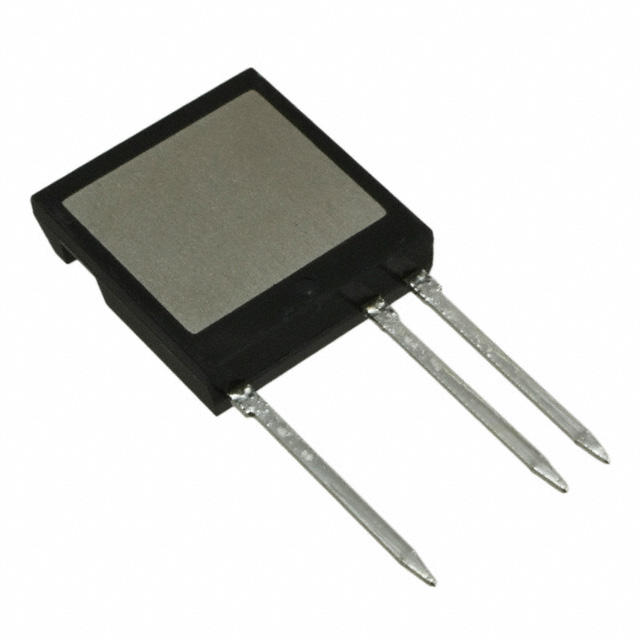

IXBF20N300
- Mfr.Part #
- IXBF20N300
- Manufacturer
- Littelfuse
- Package / Case
- i4-Pac™-5 (3 Leads)
- Datasheet
- Download
- Description
- IGBT 3000V 34A 150W ISOPLUSI4
- Stock
- 1,461
- In Stock :
- 1,461
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- Transistors - IGBTs - Single
- Mount :
- Through Hole
- Series :
- BIMOSFET™
- Collector Emitter Breakdown Voltage :
- 3kV
- Turn Off Time-Nom (toff) :
- 695 ns
- Terminal Finish :
- Tin/Silver/Copper (Sn/Ag/Cu)
- JESD-609 Code :
- e1
- Additional Feature :
- LOW CONDUCTION LOSS
- Case Connection :
- Isolated
- RoHS :
- Compliant
- Maximum Operating Temperature :
- + 150 C
- Reverse Recovery Time :
- 1.35 μs
- Mounting Type :
- Through Hole
- Length :
- 20.29 mm
- Current - Collector Pulsed (Icm) :
- 150A
- Supplier Device Package :
- ISOPLUS i4-PAC™
- Test Condition :
- --
- Number of Elements :
- 1
- Qualification Status :
- Not Qualified
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Base Product Number :
- IXBF20
- IGBT Type :
- --
- Published :
- 2012
- Gate-Emitter Voltage-Max :
- 20V
- Configuration :
- SINGLE WITH BUILT-IN DIODE
- Product Type :
- IGBT Transistors
- Minimum Operating Temperature :
- - 55 C
- Voltage - Collector Emitter Breakdown (Max) :
- 3000V
- Input Type :
- Standard
- Collector Emitter Voltage (VCEO) :
- 3.2V
- Gate-Emitter Thr Voltage-Max :
- 5V
- Td (on/off) @ 25°C :
- --
- Transistor Element Material :
- SILICON
- Brand :
- IXYS
- RoHS Status :
- ROHS3 Compliant
- Pbfree Code :
- yes
- Collector-Emitter Voltage-Max :
- 3000 V
- Power Dissipation-Max (Abs) :
- 110 W
- Technology :
- Si
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 21.34 mm
- Terminal Form :
- THROUGH-HOLE
- Pin Count :
- 3
- Number of Terminations :
- 3
- Transistor Application :
- POWER CONTROL
- Width :
- 5.21 mm
- Package Shape :
- RECTANGULAR
- Current - Collector (Ic) (Max) :
- 34A
- Operating Temperature :
- -55°C~150°C TJ
- Mounting Style :
- Through Hole
- Number of Terminals :
- 3
- Manufacturer :
- IXYS
- Max Collector Current :
- 27A
- Turn On Time :
- 608 ns
- Package / Case :
- i4-Pac™-5 (3 Leads)
- Reach Compliance Code :
- Compliant
- Polarity/Channel Type :
- N-Channel
- Tradename :
- BIMOSFET
- Switching Energy :
- --
- Product Status :
- Active
- Collector Current-Max (IC) :
- 27 A
- Terminal Position :
- Single
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Max Power Dissipation :
- 110W
- Surface Mount :
- No
- JESD-30 Code :
- R-PSIP-T3
- Power - Max :
- 150W
- Package :
- Tube
- Packaging :
- Tube
- Factory Lead Time :
- 28 Weeks
- Reverse Recovery Time (trr) :
- 1.35µs
- Product Category :
- IGBT Transistors
- Gate Charge :
- 105nC
- Vce(on) (Max) @ Vge, Ic :
- 3.2V @ 15V, 20A
