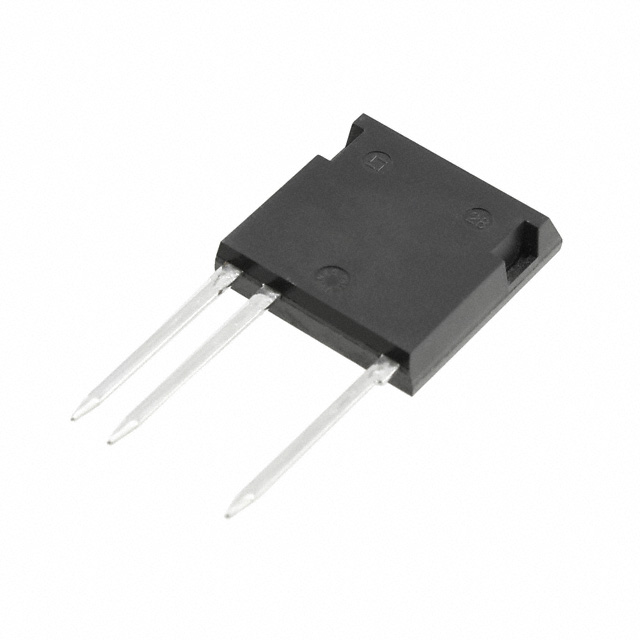

IXBF32N300
- Mfr.Part #
- IXBF32N300
- Manufacturer
- Littelfuse
- Package / Case
- i4-Pac™-5 (3 Leads)
- Datasheet
- Download
- Description
- IGBT 3000V 40A 160W ISOPLUSI4
- Stock
- 26,368
- In Stock :
- 26,368
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Littelfuse
- Product Category :
- Transistors - IGBTs - Single
- Td (on/off) @ 25°C :
- --
- Technology :
- Si
- Product Type :
- IGBT Transistors
- Turn Off Time-Nom (toff) :
- 795 ns
- Width :
- 5.21 mm
- Qualification Status :
- Not Qualified
- Maximum Operating Temperature :
- + 150 C
- Max Collector Current :
- 40A
- Subcategory :
- IGBTs
- Package :
- Tube
- Input Type :
- Standard
- Product Category :
- IGBT Transistors
- Brand :
- IXYS
- Collector-Emitter Voltage-Max :
- 3000 V
- Published :
- 2009
- Base Product Number :
- IXBF32
- Switching Energy :
- --
- Collector Emitter Voltage (VCEO) :
- 3.2V
- Series :
- BIMOSFET™
- JESD-609 Code :
- e1
- Polarity/Channel Type :
- N-Channel
- Mounting Style :
- Through Hole
- Case Connection :
- Isolated
- JESD-30 Code :
- R-PSIP-T3
- Packaging :
- Tube
- Reverse Recovery Time (trr) :
- 1.5μs
- Tradename :
- BIMOSFET
- Package Shape :
- RECTANGULAR
- Terminal Position :
- Single
- Terminal Form :
- THROUGH-HOLE
- Voltage - Collector Emitter Breakdown (Max) :
- 3000V
- Manufacturer :
- IXYS
- Mounting Type :
- Through Hole
- IGBT Type :
- --
- Test Condition :
- --
- Turn On Time :
- 573 ns
- Terminal Finish :
- TIN SILVER COPPER
- Number of Elements :
- 1
- Current - Collector (Ic) (Max) :
- 40A
- Gate Charge :
- 142nC
- Minimum Operating Temperature :
- - 55 C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Collector Emitter Breakdown Voltage :
- 3kV
- Max Power Dissipation :
- 160W
- Number of Terminals :
- 3
- Operating Temperature :
- -55°C~150°C TJ
- Surface Mount :
- No
- RoHS Status :
- ROHS3 Compliant
- Pin Count :
- 3
- Pbfree Code :
- yes
- Reverse Recovery Time :
- 1.5 μs
- Factory Lead Time :
- 16 Weeks
- Product Status :
- Active
- Configuration :
- SINGLE WITH BUILT-IN DIODE
- Supplier Device Package :
- ISOPLUS i4-PAC™
- Length :
- 20.29 mm
- Transistor Element Material :
- SILICON
- RoHS :
- Compliant
- Mount :
- Through Hole
- Additional Feature :
- LOW CONDUCTION LOSS
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Vce(on) (Max) @ Vge, Ic :
- 3.2V @ 15V, 32A
- Package / Case :
- i4-Pac™-5 (3 Leads)
- Current - Collector Pulsed (Icm) :
- 250A
- Power - Max :
- 160W
- Collector Current-Max (IC) :
- 40 A
- Transistor Application :
- POWER CONTROL
- Height :
- 21.34 mm
- Reach Compliance Code :
- Unknown
- Number of Terminations :
- 3
- Datasheets
- IXBF32N300
