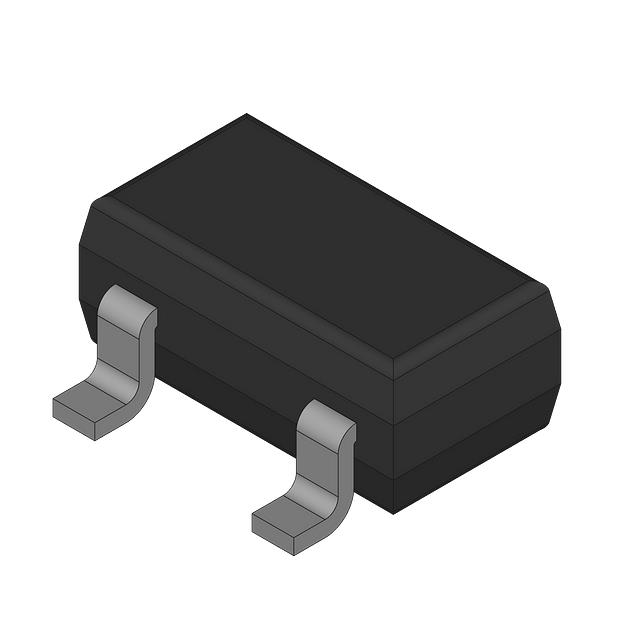

FDN306P

Manufacturer :

Fairchild Semiconductor

Product Category :

Transistors - FETs, MOSFETs - Single

Vgs (Max) :

±8V

Radiation Hardening :

No

Published :

2001

Drain to Source Voltage (Vdss) :

12V

Packaging :

Tape and Reel (TR)

Rise Time :

10ns

Element Configuration :

Single

Dual Supply Voltage :

-12V

Turn-Off Delay Time :

38 ns

Supplier Device Package :

SuperSOT-3

Package / Case :

TO-236-3, SC-59, SOT-23-3

Power Dissipation :

500mW

Voltage :

12V

Current Rating :

-2.6A

Power Dissipation-Max :

500mW Ta

Drain to Source Resistance :

40mOhm

Drain to Source Breakdown Voltage :

-12V

REACH SVHC :

No SVHC

Height :

940μm

Factory Lead Time :

10 Weeks

Input Capacitance (Ciss) (Max) @ Vds :

1138pF @ 6V

Mount :

Surface Mount

Turn On Delay Time :

11 ns

Length :

2.92mm

Fall Time (Typ) :

10 ns

Min Operating Temperature :

-55°C

Lead Free :

Lead Free

Gate Charge (Qg) (Max) @ Vgs :

17nC @ 4.5V

Resistance :

40mOhm

Number of Elements :

1

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Input Capacitance :

1.138nF

Vgs(th) (Max) @ Id :

1.5V @ 250µA

Current - Continuous Drain (Id) @ 25°C :

2.6A Ta

Voltage - Rated DC :

-12V

Nominal Vgs :

-600 mV

Current :

26A

Gate to Source Voltage (Vgs) :

8V

Width :

1.4mm

Operating Temperature :

-55°C~150°C TJ

FET Type :

P-Channel

Drive Voltage (Max Rds On,Min Rds On) :

1.8V 4.5V

Rds On Max :

40 mΩ

Number of Pins :

3

Series :

PowerTrench®

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Surface Mount

Rds On (Max) @ Id, Vgs :

40mOhm @ 2.6A, 4.5V

Contact Plating :

Tin

Threshold Voltage :

-600mV

Termination :

SMD/SMT

Continuous Drain Current (ID) :

-2.6A

Max Operating Temperature :

150°C

RoHS Status :

ROHS3 Compliant
