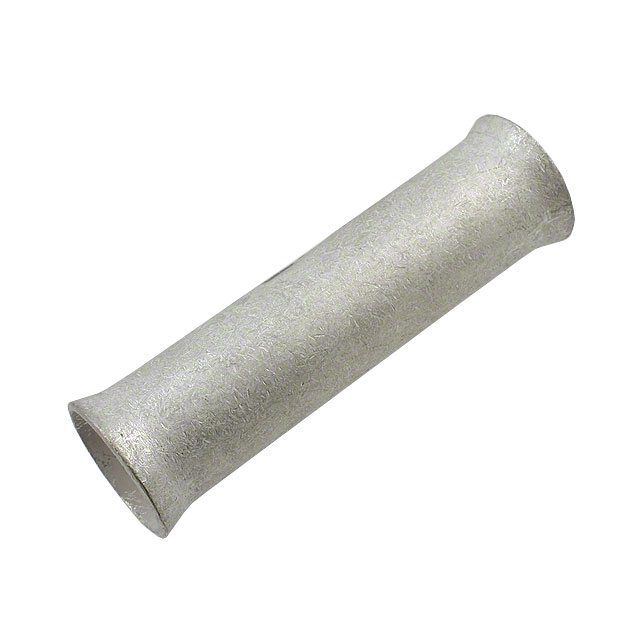

53089

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Wire Splice Connectors

Termination :

Crimp

Operating Temperature (Min) :

-65°C

ELV :

Compliant

Body Breadth :

0.199 inch

Terminal Type :

Butt Splice, Inline, Individual Openings

Contact Pattern :

RECTANGULAR

Contact Material :

Copper

Number of Wire Entries :

2

Dielectric Withstanding Voltage :

750VAC V

Wire Gauge :

500MCM (kcmil)

Thickness :

2.3368mm

PCB Contact Pattern :

RECTANGULAR

Factory Lead Time :

15 Weeks

Diameter :

36.88mm

Mating Contact Pitch :

0.1 inch

Total Number of Contacts :

18

IEC Conformance :

No

Contact Plating :

Tin

Contact Style :

BELLOWED TYPE

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

RoHS Compliant

MIL Conformance :

No

Number Of PCB Rows :

2

Number of Conductors :

ONE

Additional Feature :

SIDE BY SIDE STACKABLE

Gender :

FEMALE

Length :

4.75mm

Published :

2004

Packaging :

Bulk

Body/Shell Style :

Receptacle

Sealable :

No

Connector Type :

BOARD CONNECTOR

Reliability :

COMMERCIAL

ECCN Code :

EAR99

Number of Rows :

2

Lead Free :

Lead Free

Insulation Material :

GLASS FILLED POLYESTER

Reference Standard :

UL

HTS Code :

8536.69.40.40

Filter Feature :

No

Pbfree Code :

yes

Mounting Type :

BOARD

DIN Conformance :

No

Orientation :

Straight

UL Flammability Code :

94V-0

Insulation :

Non-Insulated

Rated Current (Signal) :

3A

Series :

Ampower

Mixed Contacts :

No

Mating Contact Row Spacing :

0.1 inch

Insulator Color :

Green
