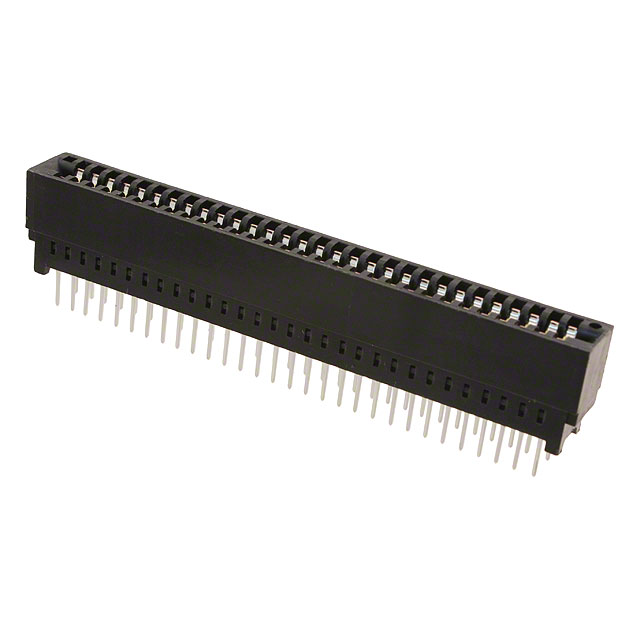

530843-7
Or copy the link below:
- Mfr.Part #
- 530843-7
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE FMALE 60POS 0.100
- Stock
- 33,932
- In Stock ：
- 33,932
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Reference Standard :
- UL, CSA
- Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Contact Material :
- Bronze
- Max Operating Temperature :
- 85°C
- Packaging :
- Bulk
- Lead Length :
- 3.18mm
- Gender :
- FEMALE
- Contact Plating :
- Tin, Gold
- Additional Feature :
- AMP
- Insulation Resistance :
- 5000000000Ohm
- Rated Current (Signal) :
- 3A
- Body/Shell Style :
- Receptacle
- IEC Conformance :
- No
- Contact Resistance :
- 10MOhm
- Plating Thickness :
- 30μin
- ELV :
- Compliant
- Pitch :
- 2.54mm
- Min Operating Temperature :
- -55°C
- Dielectric Withstanding Voltage :
- 1000VAC V
- PCB Mounting Orientation :
- Vertical
- Withdrawl Force-Min :
- .556 N
- Housing Material :
- Polyester
- Option :
- GENERAL PURPOSE
- Reliability :
- COMMERCIAL
- Body Depth :
- 0.61 inch
- Max Voltage Rating (AC) :
- 400V
- UL Flammability Code :
- 94V-0
- Lead Free :
- Lead Free
- Insertion Force-Max :
- 3.336 N
- Underplate Material :
- Nickel
- PCB Contact Pattern :
- RECTANGULAR
- Body Breadth :
- 0.368 inch
- Contact Pattern :
- RECTANGULAR
- Color :
- Black
- Mixed Contacts :
- No
- Card Thickness :
- 1.778mm
- DIN Conformance :
- No
- Number of Contacts :
- 60
- Contact Finish - Mating :
- NOT SPECIFIED
- MIL Conformance :
- No
- Termination :
- Solder
- Mount :
- Through Hole
- Pbfree Code :
- No
- Connector Type :
- CARD EDGE CONNECTOR
- RoHS Status :
- Non-RoHS Compliant
- Number Of PCB Rows :
- 2
- Contact Style :
- BELLOWED TYPE
- Filter Feature :
- No
- Insulation Material :
- Glass
- PCB Contact Row Spacing :
- 5.08 mm
- JESD-609 Code :
- e3
- Number of Rows :
- 2
- Datasheets
- 530843-7
Female Black 2.54mm Bronze 2 Rows Bulk Solder
530843-7 Overview
The material was packaged according to the specifications of Bulk.This device is connected through the connector socket CARD EDGE CONNECTOR.Additionally, this chip has the following features: AMPIn order for the system to operate in a stable manner, it must be operated at 85°C°C at its maximum.In order to ensure that it is reliable, it must operate at a minimum temperature of -55°C degrees Celsius.
530843-7 Features
530843-7 Applications
There are a lot of TE Connectivity / AMP
530843-7 Edgeboard Connectors applications.
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
- Music reproduction technology
- Communication Systems
