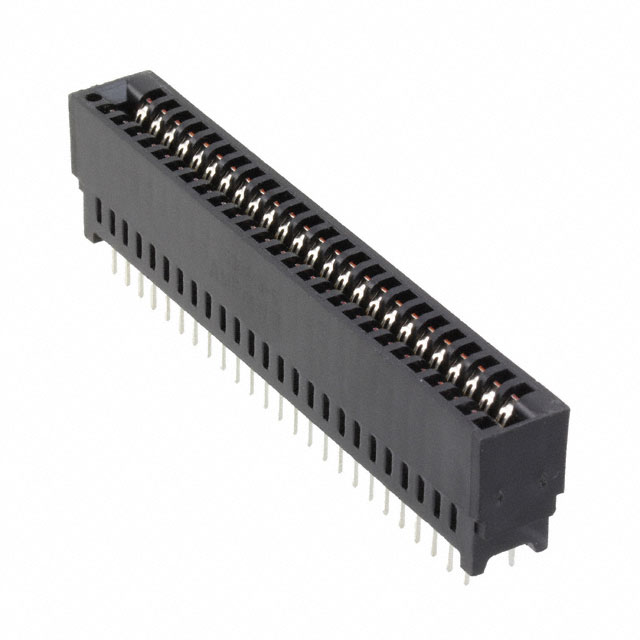

530843-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Plating Thickness :

30μin

Rated Current (Signal) :

3A

Dielectric Withstanding Voltage :

1000VAC V

Number Of PCB Rows :

2

Min Operating Temperature :

-55°C

Contact Pattern :

RECTANGULAR

Contact Plating :

Gold, Tin

Termination :

Solder

Connector Type :

CARD EDGE CONNECTOR

Number of Contacts :

120

Withdrawl Force-Min :

.556 N

Packaging :

Bulk

UL Flammability Code :

94V-0

Gender :

FEMALE

DIN Conformance :

No

Pbfree Code :

No

Pitch :

2.54mm

RoHS Status :

Non-RoHS Compliant

Additional Feature :

AMP

Contact Material :

Bronze

Body Breadth :

0.368 inch

Mixed Contacts :

No

JESD-609 Code :

e3

Body/Shell Style :

Receptacle

Underplate Material :

Nickel

Housing Material :

Polyester

Option :

GENERAL PURPOSE

Lead Length :

3.18mm

Body Depth :

0.61 inch

Max Voltage Rating (AC) :

400V

Number of Conductors :

ONE

Max Operating Temperature :

85°C

Card Thickness :

1.778mm

Mount :

Through Hole

Lead Free :

Lead Free

Number of Positions :

50

PCB Mounting Orientation :

Vertical

Filter Feature :

No

Radiation Hardening :

No

Reliability :

COMMERCIAL

Number of Rows :

2

Color :

Black

IEC Conformance :

No

Contact Resistance :

10MOhm

PCB Contact Row Spacing :

5.08 mm

Insulation Material :

Glass

MIL Conformance :

No

Contact Style :

BELLOWED TYPE

Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Insertion Force-Max :

3.336 N

Reference Standard :

UL, CSA

Lead Pitch :

2.54mm

ELV :

Compliant
