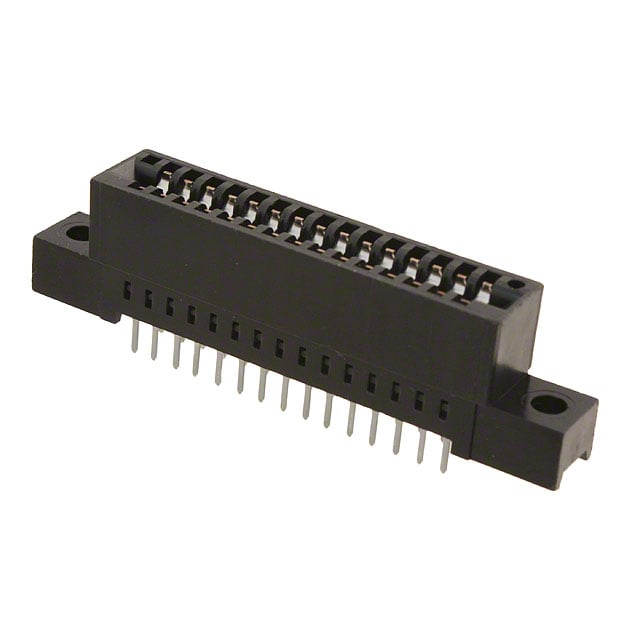

530841-2
Or copy the link below:
- Mfr.Part #
- 530841-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN EDGE DUAL FMALE 30POS 0.100
- Stock
- 21,091
- In Stock ：
- 21,091
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- DIN Conformance :
- No
- PCB Contact Pattern :
- RECTANGULAR
- JESD-609 Code :
- e0
- Max Voltage Rating (AC) :
- 400V
- Body/Shell Style :
- Receptacle
- Number of Conductors :
- ONE
- Min Operating Temperature :
- -55°C
- Gender :
- FEMALE
- Insertion Force-Max :
- 3.336 N
- Pitch :
- 2.54mm
- Underplate Material :
- Nickel
- Reliability :
- COMMERCIAL
- Card Thickness :
- 1.778mm
- Termination :
- Solder
- PCB Mounting Orientation :
- Vertical
- Body Breadth :
- 0.368 inch
- Packaging :
- Bulk
- Number of Rows :
- 2
- Radiation Hardening :
- No
- RoHS Status :
- Non-RoHS Compliant
- Insulation Material :
- Glass
- Number of Contacts :
- 30
- ELV :
- Compliant
- HTS Code :
- 8536.69.40.40
- Filter Feature :
- No
- Housing Material :
- Polyester
- Reference Standard :
- UL, CSA
- Mixed Contacts :
- No
- Connector Type :
- CARD EDGE CONNECTOR
- Insulation Resistance :
- 5000000000Ohm
- Withdrawl Force-Min :
- .556 N
- Contact Style :
- BELLOWED TYPE
- Flammability Rating :
- UL94 V-0
- Dielectric Withstanding Voltage :
- 1000VAC V
- Contact Pattern :
- RECTANGULAR
- Mount :
- Through Hole
- Body Depth :
- 0.61 inch
- ECCN Code :
- EAR99
- Additional Feature :
- AMP
- IEC Conformance :
- No
- Contact Plating :
- Gold
- Lead Length :
- 3.18mm
- Max Operating Temperature :
- 85°C
- Contact Resistance :
- 10MOhm
- Color :
- Black
- Contact Material :
- Bronze
- Lead Free :
- Contains Lead
- Number Of PCB Rows :
- 2
- PCB Contact Row Spacing :
- 5.08 mm
- UL Flammability Code :
- 94V-0
- MIL Conformance :
- No
- Datasheets
- 530841-2
530841-2 Documents
Female Black 2.54mm Bronze 2 Rows Bulk Solder
530841-2 Overview
Material was packaged in accordance with Bulk's specifications.The device is connected via the connector socket CARD EDGE CONNECTOR.Additional features of this chip include: AMPIt is possible to maintain stable operation at a temperature of 85°C°C.Ensure its reliability by working at a minimum temperature of -55°C degrees Celsius.
530841-2 Features
530841-2 Applications
There are a lot of TE Connectivity / AMP
530841-2 Edgeboard Connectors applications.
- Cell Phones
- Digital Multimeters, PLC's (Programming Logic Controllers)
- RADAR processing, digital oscilloscopes
- CMOS Image sensors for mobile applications
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
