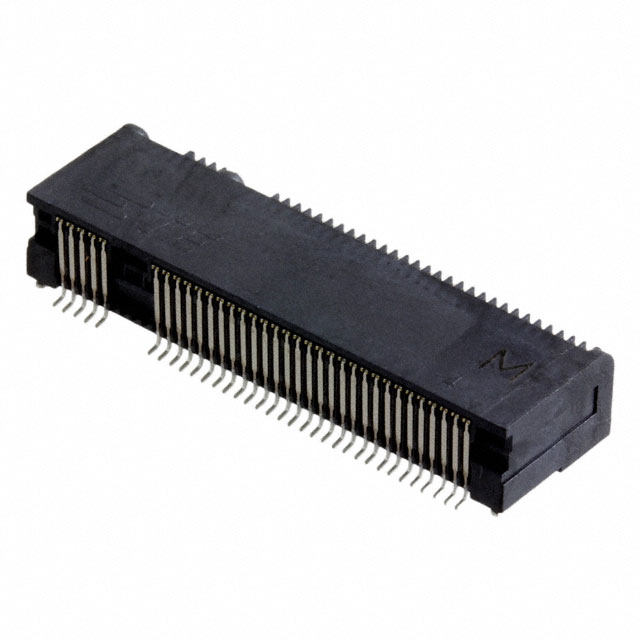

1-2199230-6
Or copy the link below:
- Mfr.Part #
- 1-2199230-6
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN M.2 FMALE 67POS 0.020 GOLD
- Stock
- 1,637
- In Stock ：
- 1,637
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Circuit Application :
- Power
- Number of Conductors :
- ONE
- Sealable :
- No
- Operating Temperature :
- -40°C~80°C
- Number Of PCB Rows :
- 2
- Contact Material :
- COPPER ALLOY
- Option :
- GENERAL PURPOSE
- Gender :
- FEMALE
- Published :
- 2014
- Mount :
- Surface Mount
- Contact Pattern :
- RECTANGULAR
- PCB Mounting Orientation :
- RIGHT ANGLE
- Mounting Type :
- Surface Mount, Right Angle
- Material - Insulation :
- Thermoplastic
- Filter Feature :
- No
- Body Breadth :
- 0.16 inch
- Reference Standard :
- UL
- ELV :
- Compliant
- Body Depth :
- 0.3 inch
- Length :
- 21.8948mm
- Number of Rows :
- 2
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Read Out :
- Dual
- HTS Code :
- 8536.69.40.40
- Operating Supply Voltage :
- 50V
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Feature :
- Board Guide
- Card Type :
- M.2 (NGFF) Mini Card
- PCB Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Total Number of Contacts :
- 67
- Packaging :
- Cut Tape (CT)
- Number of Positions :
- 67
- RoHS Status :
- RoHS Compliant
- Height :
- 4.2mm
- UL Flammability Code :
- 94V-0
- Current Rating :
- 500mA
- Plating Thickness :
- 30μin
- Contact Current Rating :
- 500mA
- Pitch :
- 0.020 0.50mm
- Factory Lead Time :
- 25 Weeks
- Width :
- 8.7mm
- Mixed Contacts :
- No
- Connector Type :
- CARD EDGE CONNECTOR
- Voltage - Rated :
- 50V
- Contact Finish :
- Gold
- Termination :
- Solder
- Orientation :
- RIGHT ANGLE
- Contact Plating :
- Gold, Tin
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Black
- Datasheets
- 1-2199230-6
