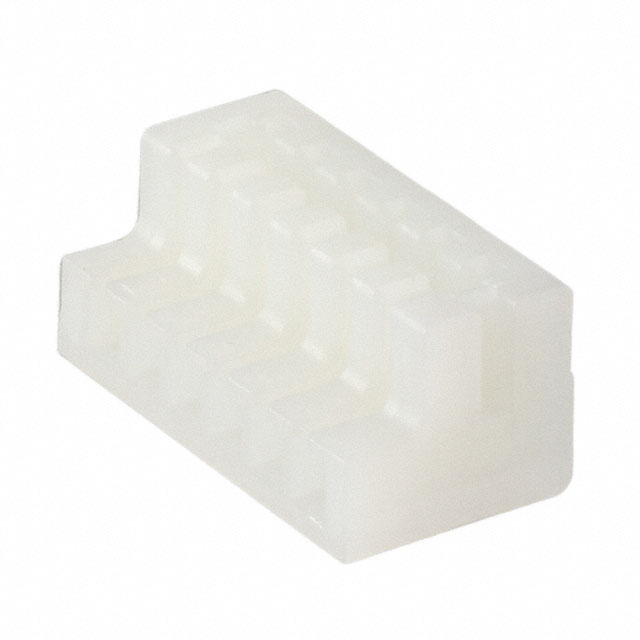

530853-3
Or copy the link below:
- Mfr.Part #
- 530853-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE HSG 12POS .156 NAT
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Card Edge Connector Housings
- Mount :
- Cable, Free Hanging
- Orientation :
- Straight
- Number of Contacts :
- 6
- Number of Rows :
- 1
- Contact Finish - Mating :
- NOT SPECIFIED
- Reference Standard :
- UL, CSA
- Mounting Type :
- Free Hanging (In-Line)
- Material - Insulation :
- Polyamide (PA), Nylon
- Row Spacing :
- 3.9624 mm
- Contact Pattern :
- RECTANGULAR
- MIL Conformance :
- No
- Operating Temperature :
- -40°C~105°C
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Card Thickness :
- 0.055 ~ 0.070 1.40mm ~ 1.78mm
- Contact Gender :
- FEMALE
- Housing Material :
- Nylon
- Factory Lead Time :
- 15 Weeks
- Number of Positions :
- 12
- Series :
- DUO-TYNE
- Body Depth :
- 0.5 inch
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Contact Style :
- SQ PIN-SKT
- Pitch :
- 0.156 3.96mm
- RoHS Status :
- RoHS Compliant
- Dielectric Withstanding Voltage :
- 2200VAC V
- ECCN Code :
- EAR99
- Body Breadth :
- 0.59 inch
- Lead Free :
- Not Applicable
- Packaging :
- Bulk
- Note :
- Contacts Not Included
- Length :
- 27.73mm
- Rated Current (Signal) :
- 5A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reliability :
- COMMERCIAL
- Published :
- 2004
- Color :
- Natural
- Contact Material :
- NOT SPECIFIED
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Card Type :
- Non Specified - Dual Edge
- Insulation Diameter :
- 3.3 mm
- Connector Type :
- CARD EDGE CONNECTOR
- IEC Conformance :
- No
- Filter Feature :
- No
- ELV :
- Compliant
- Datasheets
- 530853-3
