Mfr.Part #
530843-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN CARDEDGE FMALE 24POS 0.100
Stock
45,377
In Stock :
45,377

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Edgeboard Connectors
PCB Contact Row Spacing :
3.81 mm
Rated Current (Signal) :
3A
IEC Conformance :
No
Packaging :
Bulk
PCB Mounting Orientation :
Vertical
Plating Thickness :
30μin
Dielectric Withstanding Voltage :
1400VAC V
Pitch :
2.54mm
Contact Resistance :
10MOhm
RoHS Status :
RoHS Compliant
Reliability :
COMMERCIAL
Number of Contacts :
24
Number of Conductors :
ONE
Gender :
FEMALE
Underplate Material :
Nickel
Contact Material :
Bronze
DIN Conformance :
No
Option :
GENERAL PURPOSE
Body Breadth :
0.368 inch
Connector Type :
CARD EDGE CONNECTOR
Body/Shell Style :
Receptacle
Mount :
Through Hole
Max Voltage Rating (AC) :
400V
Card Thickness :
1.778mm
Contact Pattern :
RECTANGULAR
Max Operating Temperature :
85°C
Termination :
Solder
Reference Standard :
UL
Color :
Black
Body Length or Diameter :
1.46 inch
Number of Rows :
2
PCB Contact Pattern :
RECTANGULAR
Contact Style :
BELLOWED TYPE
Housing Material :
Polyester
Pbfree Code :
yes
Number Of PCB Rows :
2
Min Operating Temperature :
-55°C
Mixed Contacts :
No
MIL Conformance :
No
ELV :
Compliant
Contact Plating :
Tin
Flammability Rating :
UL94 V-0
Filter Feature :
No
Mating Contact Row Spacing :
0.1 inch
Insulation Material :
Glass
Radiation Hardening :
No
Insulation Resistance :
5000000000Ohm
Lead Length :
3.18mm
Body Depth :
0.55 inch
Datasheets
530843-1
Introducing Edgeboard Connectors TE Connectivity AMP Connectors 530843-1 from Chip IC,where excellence meets affordability. This product stands out with its 530843-1 pinout, 530843-1 datasheet PDF, 530843-1 amp .Beyond Edgeboard Connectors TE Connectivity AMP Connectors 530843-1 ,we also offer SM3ZS067U215AER1500, 1759547-1, 1-2199230-6, Our vast inventory has you covered. Contact us now for immediate solutions.

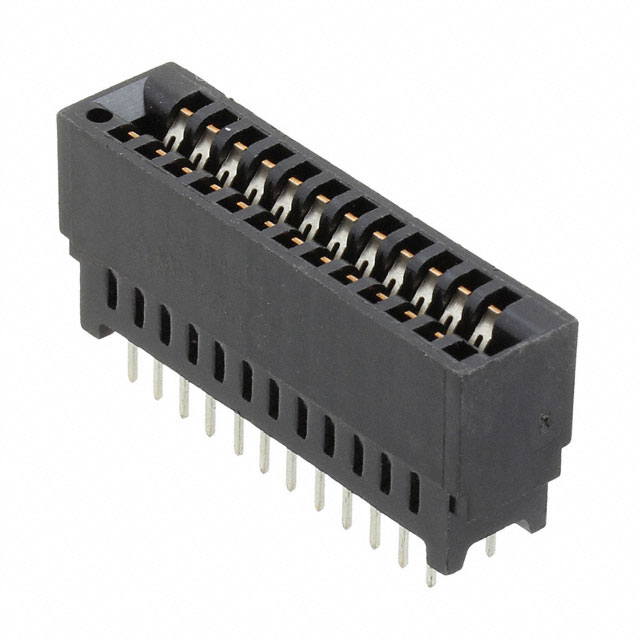

TE Connectivity AMP Connectors 530843-1


Female Black 2.54mm Bronze 2 Rows Bulk Solder

530843-1 Overview


Material was packaged according to Bulk's specifications.Devices are connected through connector sockets CARD EDGE CONNECTOR.For stable operation, a maximum operating temperature of 85°C°C should be considered.The device must maintain a minimum working temperature of -55°C degrees Celsius in order to ensure its reliability.
