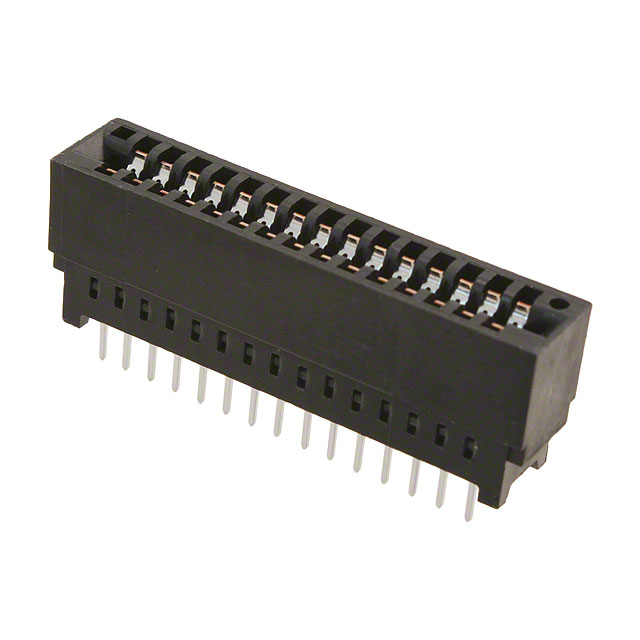

530843-2
Or copy the link below:
- Mfr.Part #
- 530843-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN CARDEDGE FMALE 30POS 0.100
- Stock
- 42,075
- In Stock ：
- 42,075
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Edgeboard Connectors
- Gender :
- FEMALE
- Body/Shell Style :
- Receptacle
- Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- DIN Conformance :
- No
- Contact Finish :
- Gold
- Number of Rows :
- 2
- Filter Feature :
- No
- PCB Contact Row Spacing :
- 5.08 mm
- Mount :
- Through Hole
- Reliability :
- COMMERCIAL
- Additional Feature :
- AMP
- Published :
- 2009
- IEC Conformance :
- No
- Rated Current (Signal) :
- 3A
- Width :
- 9.35mm
- Contact Material :
- Phosphor Bronze
- Underplate Material :
- Nickel
- Mounting Type :
- Through Hole
- Body Depth :
- 0.61 inch
- UL Flammability Code :
- 94V-0
- Lead Length :
- 3.18mm
- Total Number of Contacts :
- 15
- Card Thickness :
- 0.054 ~ 0.070 1.37mm ~ 1.78mm
- Lead Free :
- Lead Free
- Contact Resistance :
- 10MOhm
- Color :
- Black
- Body Breadth :
- 0.368 inch
- Insertion Force-Max :
- 3.336 N
- Withdrawl Force-Min :
- .556 N
- RoHS Status :
- Non-RoHS Compliant
- Contact Plating :
- Gold, Tin
- Option :
- GENERAL PURPOSE
- Mixed Contacts :
- No
- Pitch :
- 0.100 2.54mm
- Material - Insulation :
- Polyester, Glass Filled
- ELV :
- Compliant
- Length :
- 44.7mm
- Operating Temperature :
- -55°C~ 85°C
- Orientation :
- Vertical
- Reference Standard :
- UL, CSA
- Contact Finish Thickness :
- 30.0μin 0.76μm
- PCB Contact Pattern :
- RECTANGULAR
- Card Type :
- Multibus I
- Read Out :
- Dual
- Max Voltage Rating (AC) :
- 400V
- Connector Type :
- CARD EDGE CONNECTOR
- HTS Code :
- 8536.69.40.40
- Number Of PCB Rows :
- 2
- Housing Material :
- Polyester
- ECCN Code :
- EAR99
- Number of Positions :
- 30
- Dielectric Withstanding Voltage :
- 1000VAC V
- Contact Style :
- BELLOWED TYPE
- Radiation Hardening :
- No
- Series :
- Standard Edge II
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e3
- Insulation Resistance :
- 5000000000Ohm
- Lead Pitch :
- 2.54mm
- Flammability Rating :
- UL94 V-0
- Number of Conductors :
- ONE
- Packaging :
- Bulk
- MIL Conformance :
- No
- Datasheets
- 530843-2
530843-2 Documents
Female Black 0.100 2.54mm Phosphor Bronze 2 Rows Bulk Solder Gold 30 Positions Polyester, Glass Filled
530843-2 Overview
Material was packaged according to Bulk's specifications.It's best to mount type Through Hole.Devices are connected through connector sockets CARD EDGE CONNECTOR.The Standard Edge II indicates the series number of the device.It is important to note that this chip has the following additional features: AMP
530843-2 Features
Standard Edge II series
530843-2 Applications
There are a lot of TE Connectivity AMP Connectors
530843-2 Edgeboard Connectors applications.
