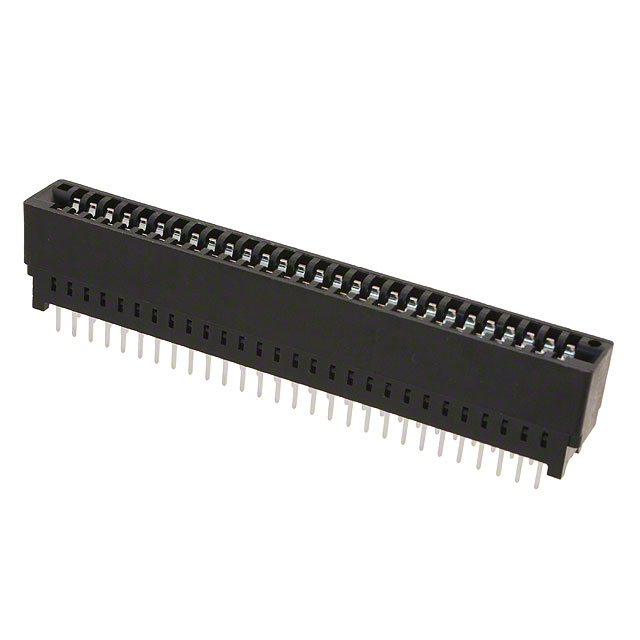

530843-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Lead Length :

3.18mm

Flammability Rating :

UL94 V-0

PCB Contact Pattern :

RECTANGULAR

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

Termination :

Solder

Rated Current (Signal) :

3A

Contact Pattern :

RECTANGULAR

Reference Standard :

UL, CSA

Contact Material :

Bronze

IEC Conformance :

No

Mount :

Through Hole

Contact Resistance :

10MOhm

UL Flammability Code :

94V-0

Underplate Material :

Nickel

JESD-609 Code :

e3

Gender :

FEMALE

Radiation Hardening :

No

Lead Pitch :

2.54mm

Body/Shell Style :

Receptacle

Connector Type :

CARD EDGE CONNECTOR

Additional Feature :

AMP

Body Length or Diameter :

3.06 inch

PCB Mounting Orientation :

Vertical

Max Operating Temperature :

85°C

Contact Plating :

Gold, Tin

Pitch :

2.54mm

HTS Code :

8536.69.40.40

Number of Rows :

2

Mixed Contacts :

No

DIN Conformance :

No

ELV :

Compliant

Filter Feature :

No

Color :

Black

Dielectric Withstanding Voltage :

1000VAC V

Card Thickness :

1.778mm

Insertion Force-Max :

3.336 N

ECCN Code :

EAR99

Body Breadth :

0.368 inch

Min Operating Temperature :

-55°C

Number of Contacts :

56

PCB Contact Row Spacing :

5.08 mm

Plating Thickness :

30μin

Insulation Resistance :

5000000000Ohm

Housing Material :

Polyester

Max Voltage Rating (AC) :

400V

RoHS Status :

Non-RoHS Compliant

Reliability :

COMMERCIAL

Number Of PCB Rows :

2

MIL Conformance :

No

Body Depth :

0.61 inch

Lead Free :

Lead Free

Insulation Material :

Glass

Packaging :

Bulk

Contact Style :

BELLOWED TYPE
