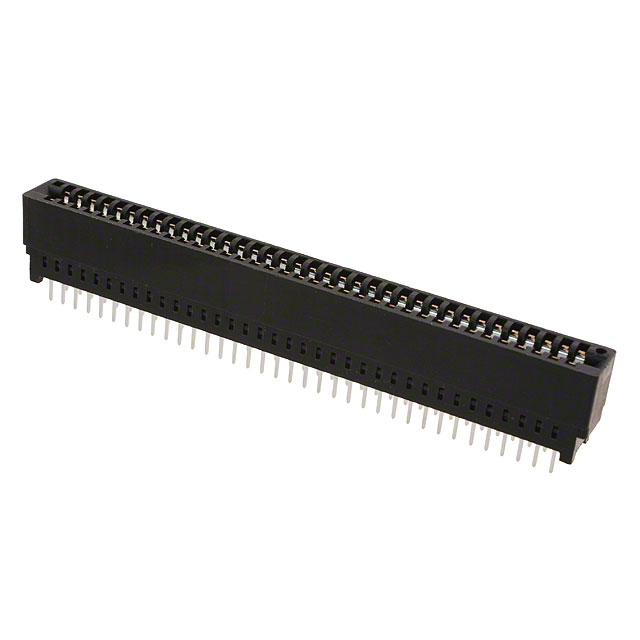

530843-8

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Edgeboard Connectors

Number of Contacts :

72

Number Of PCB Rows :

2

Body Length or Diameter :

3.86 inch

Body Breadth :

0.368 inch

Max Operating Temperature :

85°C

Underplate Material :

Nickel

PCB Contact Row Spacing :

5.08 mm

PCB Mounting Orientation :

Vertical

Housing Material :

Polyester

Rated Current (Signal) :

3A

Connector Type :

CARD EDGE CONNECTOR

Contact Style :

BELLOWED TYPE

UL Flammability Code :

94V-0

Lead Length :

3.18mm

Body Depth :

0.61 inch

RoHS Status :

Non-RoHS Compliant

Pbfree Code :

No

PCB Contact Pattern :

RECTANGULAR

Termination :

Solder

Dielectric Withstanding Voltage :

1000VAC V

Additional Feature :

AMP

Color :

Black

Card Thickness :

1.778mm

Body/Shell Style :

Receptacle

Contact Plating :

Tin, Gold

Lead Free :

Lead Free

Insulation Material :

Glass

Contact Resistance :

10MOhm

Gender :

FEMALE

Packaging :

Bulk

Min Operating Temperature :

-55°C

Number of Rows :

2

Filter Feature :

No

Reference Standard :

UL, CSA

Flammability Rating :

UL94 V-0

IEC Conformance :

No

ELV :

Compliant

Reliability :

COMMERCIAL

Insertion Force-Max :

3.336 N

Contact Material :

Bronze

Plating Thickness :

30μin

DIN Conformance :

No

Contact Pattern :

RECTANGULAR

MIL Conformance :

No

Withdrawl Force-Min :

.556 N

Mount :

Through Hole

Option :

GENERAL PURPOSE

Number of Conductors :

ONE

JESD-609 Code :

e3

Mixed Contacts :

No

Insulation Resistance :

5000000000Ohm

Pitch :

2.54mm

Radiation Hardening :

No
