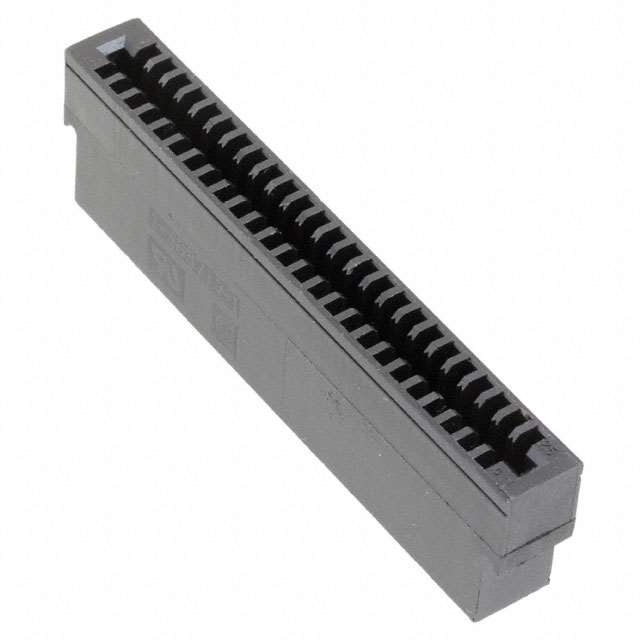

1-583717-1

Share

Or copy the link below:

Mfr.Part #
1-583717-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN CARDEDGE HSG 50POS .100 BLK
Stock
10
In Stock :
10

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Card Edge Connector Housings
Card Type :
Non Specified - Dual Edge
Connector Type :
PLUG
Published :
2004
ECCN Code :
EAR99
Mixed Contacts :
No
Material - Insulation :
Polyester Thermoplastic, Glass Filled
Orientation :
Straight
MIL Conformance :
No
HTS Code :
8536.69.40.40
Lifecycle Status :
ACTIVE (Last Updated: 4 days ago)
Total Number of Contacts :
50
IEC Conformance :
No
Pbfree Code :
yes
Card Thickness :
0.055 ~ 0.070 1.40mm ~ 1.78mm
Series :
TWIN LEAF
Number of Positions :
50
DIN Conformance :
No
Mount :
Cable, Free Hanging
Contact Current Rating :
5A
Current Rating :
5A
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Height :
19.05mm
Lead Free :
Not Applicable
ELV :
Compliant
Body Breadth :
0.35 inch
Note :
Contacts Not Included
Contact Gender :
FEMALE
Mating Retention :
Without
Number of Rows :
2
Packaging :
Bulk
Material Flammability Rating :
UL94 V-0
Depth :
19.05mm
RoHS Status :
RoHS Compliant
Color :
Black
Rated Current (Signal) :
5A
UL Flammability Code :
94V-0
Flammability Rating :
UL94 V-0
Contact Resistance :
10MOhm
Insulation Resistance :
1000000000Ohm
Contact Pattern :
RECTANGULAR
Option :
GENERAL PURPOSE
Termination :
Crimp
Housing Material :
Polyester
Factory Lead Time :
4 Weeks
Withdrawl Force-Min :
.1946 N
Operating Temperature :
-40°C~85°C
Reliability :
COMMERCIAL
Dielectric Withstanding Voltage :
1000VAC V
Mounting Type :
Free Hanging (In-Line)
Length :
71.12mm
Radiation Hardening :
No
Reference Standard :
UL, CSA
Pitch :
0.100 2.54mm
Filter Feature :
No
Datasheets
1-583717-1
Introducing Card Edge Connector Housings TE Connectivity AMP Connectors 1-583717-1 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~85°C, Mounting Type:Free Hanging (In-Line), 1-583717-1 pinout, 1-583717-1 datasheet PDF, 1-583717-1 amp .Beyond Card Edge Connector Housings TE Connectivity AMP Connectors 1-583717-1 ,we also offer 1721590612, 1703129-1, 583861-5, Our vast inventory has you covered. Contact us now for immediate solutions.
