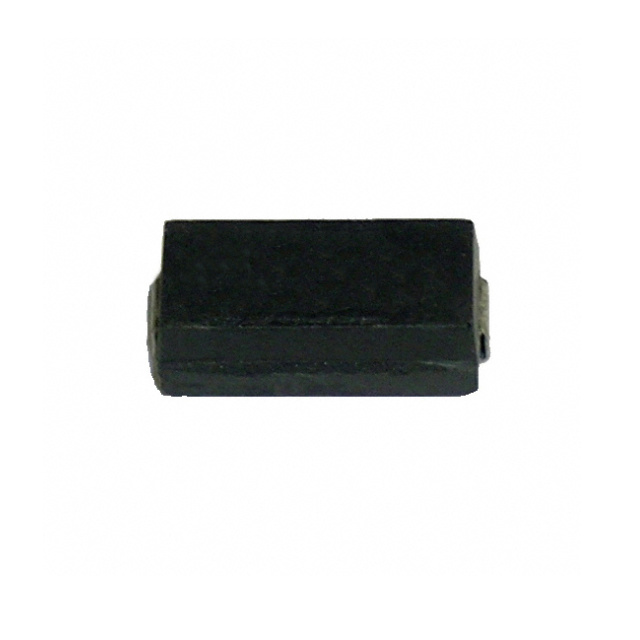

SM4527FT50L0

Manufacturer :

Stackpole Electronics, Inc.

Product Category :

Chip Resistor - Surface Mount

Mounting Style :

PCB Mount

Minimum Operating Temperature :

- 55 C

Technology :

Wire Wound

Series :

SM

Package Shape :

RECTANGULAR PACKAGE

Number of Terminations :

2

Rated Temperature :

70

Application :

High Temperature

Resistance :

0.05

Tolerance :

1

Size / Dimension :

0.475 L x 0.270 W (12.07mm x 6.86mm)

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Power (Watts) :

2W

Resistor Type :

FIXED RESISTOR

Length :

11.56 mm

Failure Rate :

-

Power Rating :

2 W

Supplier Device Package :

SMD, Stand Off

Temperature Coefficient :

75

Mounting Feature :

Surface Mount

Width :

6.86 mm

Operating Temperature :

-55°C ~ 275°C

Number of Terminals :

2

Height - Seated (Max) :

0.230 (5.84mm)

Composition :

Wirewound

Terminal Shape :

WRAPAROUND

Maximum Operating Temperature :

+ 275 C

Features :

Moisture Resistant

Packing Method :

TR, PLASTIC, 13 INCH

Product Status :

Active

Ratings :

-

Size Code :

4527

Product Type :

Wirewound Resistors

Subcategory :

Resistors

Height :

5.46 mm

Package / Case :

4527 J-Lead

Working Voltage :

60

Rated Power Dissipation (P) :

2
