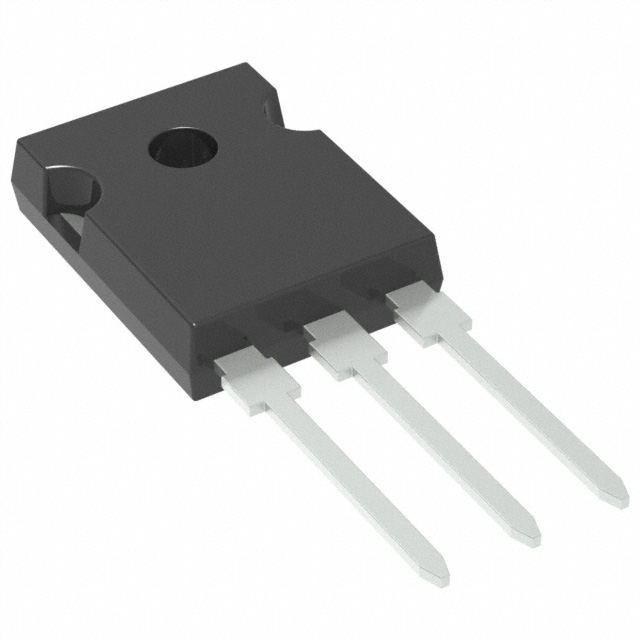

RGW00TS65CHRC11

Manufacturer :

ROHM Semiconductor

Product Category :

Transistors - IGBTs - Single

Test Condition :

400V, 25A, 10Ohm, 15V

Input Type :

Standard

Mounting Type :

Through Hole

Subcategory :

IGBTs

Continuous Collector Current :

96A

Product Type :

IGBT Transistors

Mounting Style :

Through Hole

Current - Collector (Ic) (Max) :

96 A

Technology :

SiC

Supplier Device Package :

TO-247N

Voltage - Collector Emitter Breakdown (Max) :

650 V

Vce(on) (Max) @ Vge, Ic :

1.9V @ 15V, 50A

Package Type :

TO-247N

Collector Emitter Saturation Voltage :

1.5V

Manufacturer :

Rohm Semiconductor

Brand :

Rohm Semiconductor

Product Category :

IGBT Transistors

Td (on/off) @ 25°C :

49ns/180ns

RoHS :

Details

Pin Count :

3

Package :

Tube

Power - Max :

254 W

Operating Temperature :

-40°C ~ 175°C (TJ)

Package / Case :

TO-247-3

Product Status :

Active

Switching Energy :

180μJ (on), 420μJ (off)

Power Dissipation :

254W

Minimum Operating Temperature :

- 40 C

Series :

-

Gate Charge :

141 nC

Current - Collector Pulsed (Icm) :

200 A

Configuration :

Single

Reverse Recovery Time (trr) :

33 ns

Channel Type :

N

Packaging :

Tube

IGBT Type :

-

Maximum Operating Temperature :

+ 175 C
