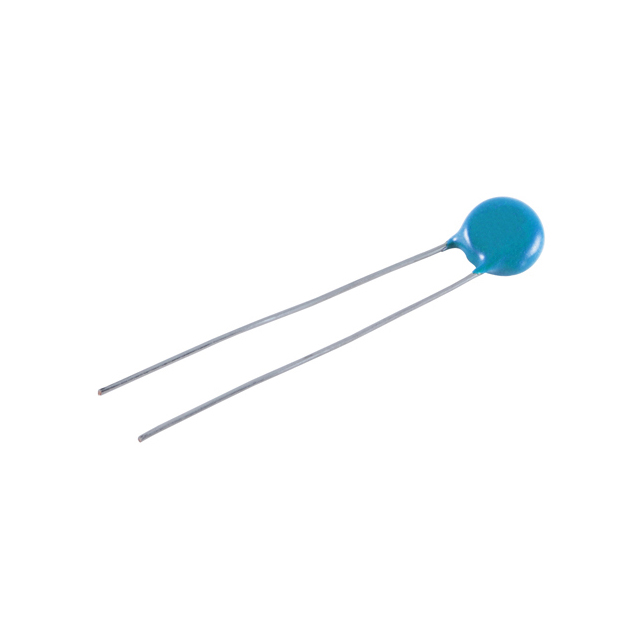

NTE2V250

Manufacturer :

NTE Electronics, Inc.

Product Category :

Manufacturer :

NTE Electronics

DC Voltage Rating (Max) :

320V

Max Operating Temperature :

85 °C

Voltage Rating (AC) :

250 V

Schedule B :

8533400080, 8533400080/8533400080/8533400080/8533400080/8533400080

Number of Circuits :

1

Clamping Voltage :

630

AC Voltage Rating (Max) :

250V

Resistor Type :

VARISTOR

Length :

88.9 mm

Energy Absorbing Capacity-Max :

70 J

Current - Surge :

45 kA

Power Rating :

600 mW

Terminal Shape :

Wire

Mounting Type :

Through Hole

Voltage Rating (DC) :

320 V

Package / Case :

Disc 16mm

Size Code :

Not Required

RoHS :

Compliant

Surface Mount :

No

Operating Temp Range :

-40C to 85C

Lead Diameter :

0.031 Inches

Product Height (mm) :

20(mm)

Lead Style :

Radial

Lead/Base Style :

Radial

Product Depth (mm) :

7(mm)

Operating Supply Voltage :

320 V

REACH SVHC :

Unknown

Max Voltage Rating (AC) :

250 V

Circuit RMS Voltage-Max :

240 V

ECCN Code :

EAR99

Operating Temperature :

-40°C ~ 85°C (TA)

Maximum AC Volts :

160 V

Weight :

72.574779 g

Package Shape :

DISK PACKAGE

Max Voltage Rating (DC) :

320 V

Mount :

Through Hole

Width :

76.2 mm

HTS Code :

8533.40.40.00

Lead Pitch :

8 mm

Energy :

70J

Circuit DC Voltage-Max :

320 V

Product Diameter (mm) :

17.8(mm)

Maximum DC Volts :

320 V

Rated Power Dissipation (P) :

0.6 W

Surge Current (Max) :

4500(A)

Terminal Placement :

Radial

Subcategory :

Non-linear Resistors

Mounting Feature :

THROUGH HOLE MOUNT

Mounting :

Through Hole

Height :

12.7 mm

Package :

Bag

Technology :

Metal Oxide

Varistor Voltage (Typ) :

390 V

Product Status :

Active

Features :

-

Reach Compliance Code :

Unknown

Series :

-

Lead Spacing :

0.315 Inches

Varistor Voltage :

390V

Min Operating Temperature :

-40 °C

Number of Terminals :

2
