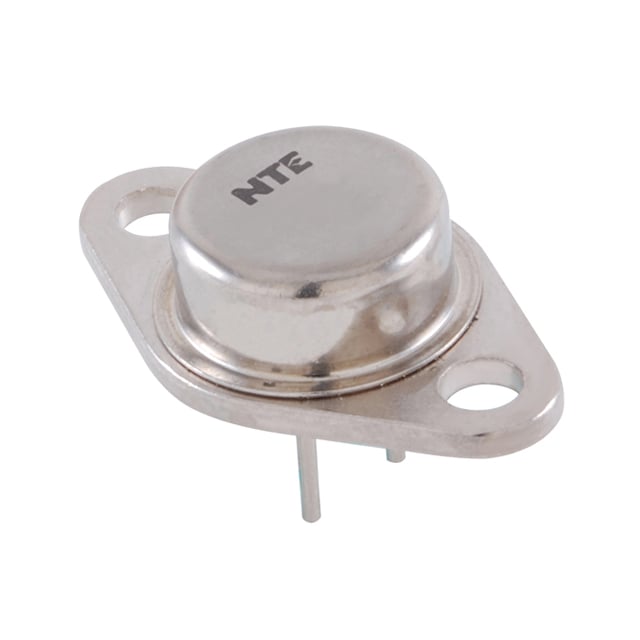

NTE276

Manufacturer :

NTE Electronics, Inc.

Product Category :

Thyristors - SCRs

Current - Hold (Ih) (Max) :

300 mA

Manufacturer :

NTE Electronics

Current - Gate Trigger (Igt) (Max) :

120 mA

Series :

-

Repetitive Peak Off-State Current (mA) :

0.5

Mounting Type :

Through Hole

Package Height :

8.89

Maximum Operating Temperature (°C) :

120

Package Length :

30.38

Maximum Holding Current (mA) :

300(Typ)

Supplier Device Package :

TO-66

Current - On State (It (AV)) (Max) :

5 A

RoHS Status :

RoHS non-compliant

Supplier Package :

TO-66

Tab :

Tab

Repetitive Peak Reverse Voltage (V) :

1250

HTS :

8541.30.00.80

Operating Temperature :

-40°C ~ 120°C (TJ)

ECCN (US) :

EAR99

Rated Average On-State Current (A) :

5

Pin Count :

4

SCR Type :

Standard Recovery

Voltage - Off State :

1.25 kV

Surge Current Rating (A) :

80

Voltage - Gate Trigger (Vgt) (Max) :

1.5 V

Repetitive Peak Forward Blocking Voltage (V) :

1250

Current - Non Rep. Surge 50, 60Hz (Itsm) :

33A, 80A

Mounting :

Through Hole

PCB changed :

3

Minimum Operating Temperature (°C) :

-40

Current - Off State (Max) :

500 µA

Maximum Gate Trigger Voltage (V) :

1.5

Package / Case :

TO-213AA, TO-66-2

Phase Control :

No

Maximum Rate of Rise of Off-State Voltage (V/us) :

1000(Min)

Standard Package Name :

TO-213-AA

Peak On-State Voltage (V) :

5.3@5A

Voltage - On State (Vtm) (Max) :

5.3 V

Product Status :

Active

Package Width :

17.78

Maximum Gate Trigger Current (mA) :

120

Package :

Bag
