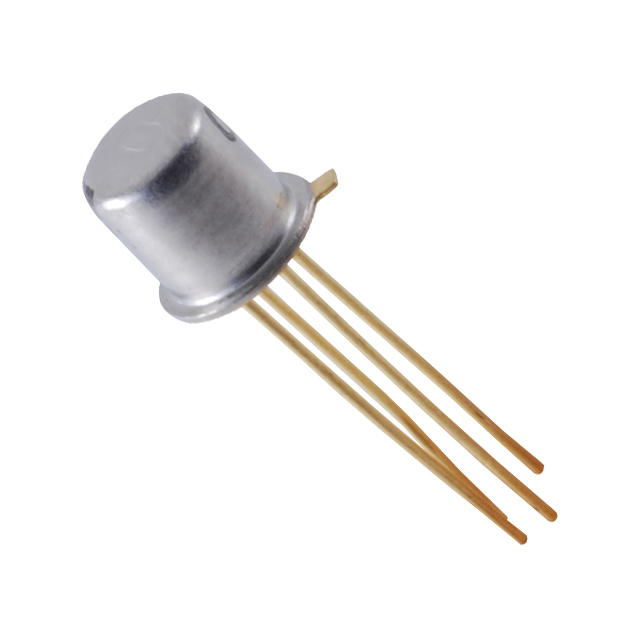

NTE160

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - RF

JEDEC-95 Code :

TO-72

Number of Terminals :

4

Operating Temperature :

90°C (TJ)

Series :

-

Manufacturer :

NTE Electronics

Collector Current-Max (IC) :

0.01 A

Package Shape :

Round

Transistor Type :

PNP

Power Dissipation-Max (Abs) :

0.2 W

Transistor Element Material :

GERMANIUM

Number of Elements :

1

Mounting Type :

Through Hole

Subcategory :

Other Transistors

Gain :

14dB

Qualification Status :

Not Qualified

Collector-Emitter Voltage-Max :

16 V

DC Current Gain-Min (hFE) :

20

Voltage - Collector Emitter Breakdown (Max) :

20V

Terminal Form :

Wire

JESD-30 Code :

O-MBCY-W4

Power - Max :

60mW

Frequency - Transition :

700MHz

ECCN Code :

EAR99

Current - Collector (Ic) (Max) :

10mA

Product Status :

Active

Highest Frequency Band :

ULTRA HIGH FREQUENCY BAND

DC Current Gain (hFE) (Min) @ Ic, Vce :

50 @ 2mA, 10V

Supplier Device Package :

TO-72

Package / Case :

TO-206AF, TO-72-4 Metal Can

HTS Code :

8541.21.00.75

Transistor Application :

AMPLIFIER

Package :

Bag

Configuration :

Single

Polarity/Channel Type :

PNP

Reach Compliance Code :

Unknown

Noise Figure (dB Typ @ f) :

5dB @ 800MHz

Terminal Position :

BOTTOM

Surface Mount :

No
