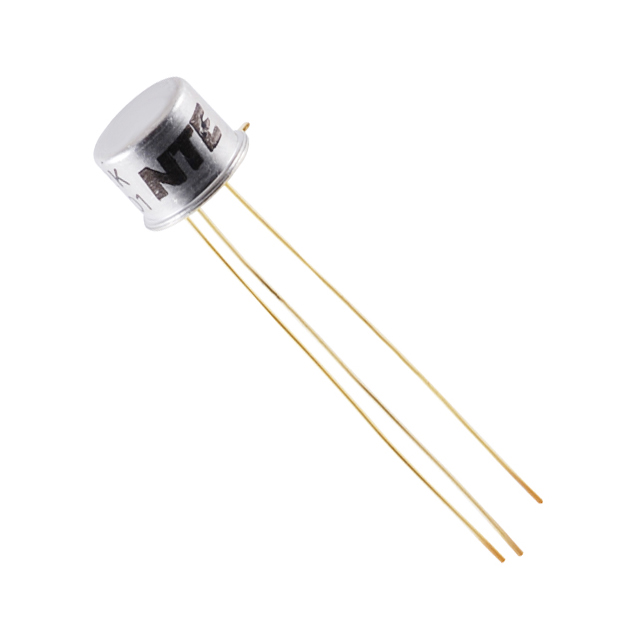

NTE102

Manufacturer :

NTE Electronics, Inc.

Product Category :

Transistors - Bipolar (BJT) - Single

Max Operating Temperature :

90 °C

Mounting Type :

Through Hole

Mount :

Through Hole

Rad Hardened :

No

Collector Emitter Voltage (VCEO) :

10 V

Transistor Polarity :

PNP

Transistor Element Material :

GERMANIUM

Operating Temp Range :

-55C TO 90C

Number of Terminals :

3

Output Power :

Not Required(W)

RoHS :

Compliant

Height :

10.3886 mm

Subcategory :

Other Transistors

Polarity/Channel Type :

PNP

Package :

Bag

Reach Compliance Code :

Unknown

Diameter :

6.09 mm

Qualification Status :

Not Qualified

DC Current Gain-Min (hFE) :

69

Operating Temperature :

90°C (TJ)

Pin Count :

3

Manufacturer :

NTE Electronics

Transistor Type :

PNP

Collector Current (DC) :

1(A)

Current Rating :

1 A

Series :

-

Polarity :

PNP

Product Status :

Active

Collector Emitter Saturation Voltage :

170 mV

Collector-Emitter Voltage-Max :

32 V

Package Type :

TO-1

Collector Base Voltage (VCBO) :

32 V

Schedule B :

8541210080, 8541210080/8541210080/8541210080/8541210080/8541210080

Mounting :

Through Hole

Package / Case :

TO-1-3 Metal Can

Emitter Base Voltage (VEBO) :

10 V

Operating Temperature Classification :

Industrial

Weight :

7.257478 g

JESD-30 Code :

O-MBCY-W3

Power Dissipation-Max (Abs) :

0.9 W

Number of Elements :

1

Current - Collector Cutoff (Max) :

25μA (ICBO)

Max Power Dissipation :

650 mW

Package Shape :

Round

ECCN Code :

EAR99

REACH SVHC :

No SVHC

Vce Saturation (Max) @ Ib, Ic :

170mV @ 50mA, 500mA

HTS Code :

8541.21.00.95

Terminal Position :

BOTTOM

Current - Collector (Ic) (Max) :

1 A

Number of Pins :

3

JEDEC-95 Code :

TO-1

Width :

76.2 mm

Length :

152.4 mm

Min Operating Temperature :

-55 °C

Surface Mount :

No

Configuration :

Single

Frequency - Transition :

-

Max Collector Current :

1 A

Transistor Application :

AMPLIFIER

Collector Current-Max (IC) :

1 A

Category :

Bipolar Small Signal

Collector-Base Voltage :

32(V)

Power Dissipation :

0.65(W)

DC Current Gain (hFE) (Min) @ Ic, Vce :

69 @ 300mA, 0V

Emitter-Base Voltage :

10(V)

Supplier Device Package :

TO-1

Power - Max :

650 mW

Terminal Form :

Wire
